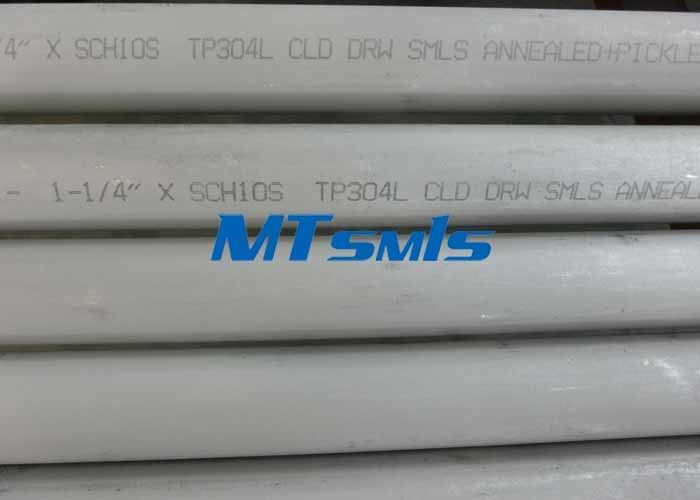

TP304 / 1.4301 Stainless Steel Seamless Pipe Big Size 20 Inch for Oil / Gas

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED & AD2000 Model Number : MTSCOSSSP25

Detail Information

Material: TP304 / 1.4301 Surface: Pickling
NDT: Eddy Current Or Hydraulic Test End Cut: Plain
Caps: With Plastic Caps At Both Ends Inspection: 100%

Product Description

TP304 / 1.4301 Stainless Steel Big Size 20 Inch Seamless Pipe In Oil And Gas





Grade



TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard



ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:6.35-44.5mm (1/4”-1 3/4”)
  WT:0.71-3.81mm (0.028”-0.15”)
  Length:Max.12M
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.



TP304 / 1.4301 Chemical compostion :

1 . (C) Carbon , max : 0.08

2 . (Mn) Manganese , max : 2

3 . (P) Phosphorus , max : 0.045

4 . (S) Sulfur , max : 0.030

5 . (Si) Silicon , max : 1

6 . (Ni) Nickel : 8.0 - 11.0

7 . (Cr) Chromium : 18.0 - 20.0

8 . (Mo) Molybdenum : --

9 . (Fe) Iron : --

10 . (Cu) Copper : --

11 . (N) Nitrogen : --





Material Grade :



American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501



TP304 / 1.4301 Stainless Steel Seamless Pipe Big Size 20 Inch for Oil / Gas



Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc



1 . Our company has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience .

2 . The raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc .

3 . We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on .

4 . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
