DN20 Sch10s 1.4306 / 1.4404 Stainless Steel Seamless Pipe With Annealed Surface

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP31

Detail Information

Material: Stainless Steel TP304 TP304LTP316 TP316L , 300 Series Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%

Product Description

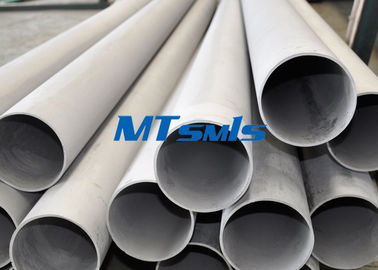

DN20 Sch10s 1.4306 / 1.4404 Stainless Steel Seamless Pipe With Annealed & Pickled Surface



1. Outer Diameter: 10.3mm-1219mm

     Wall Thickness: 1.24mm-59.54mm

2. NPS: 1/8"-24"

3. Schedule: 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S

4. Material Grade: 304/304L/316/316L/321/309S/310S, etc

5. Standard: ASTM A269, ASTM A312, etc

6. Application: used in Fluid and Gas Transport, Structure and Machining,etc



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70





  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0



DN20 Sch10s 1.4306 / 1.4404 Stainless Steel Seamless Pipe With Annealed Surface





  MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
