S30400 / S30403 ASME SA269 Stainless Steel Welded Super Long Coiled Tube For Cable Industry
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT22 |
Detail Information |
|||
Material: | 1.4404 / 1.4401 / 1.4407 & 300 Series | Standard: | ASTM A269 / ASTM A213 / ASTM A312 Etc |
---|---|---|---|
Delivery Condition: | Soft / Hard | Every Coil: | About 30Kgs Per / Coil |
Type: | Seamless | Surface: | Bright Annealed / Pickled |
Highlight: | coiled stainless tube,seamless stainless steel pipe |
Product Description

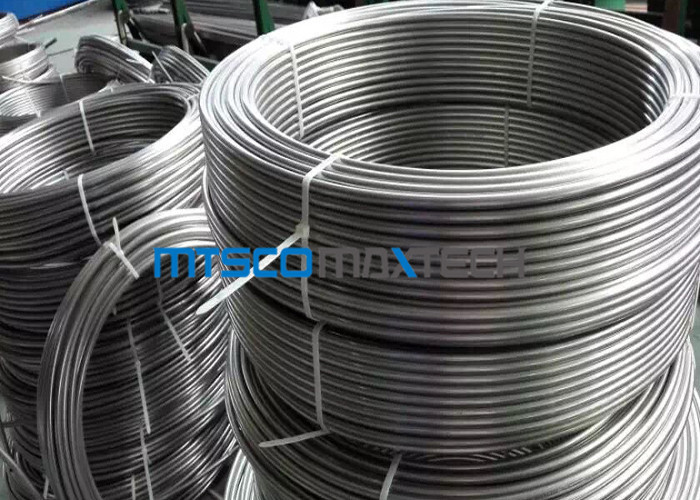

1 / 2 Inch ASTM A213 TP316 / 316L Stainless Steel Seamless Coiled Tube For Instrument
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
Chemical Composition :
Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
(Mn) Manganese, max | 2 | 2 | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 | 1 | 1 |
(Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
(Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
(Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. | Bal. | Bal. |
(Cu) Copper | N/A | N/A | N/A | N/A |
(N) Nitrogen | N/A | N/A | N/A | N/A |
Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG | |||||
SWG | Wall Thickness | SWG | Wall Thickness | ||
0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
20 | 0.036 | 0.91 |
