S30400 / S30403 ASME SA269 Stainless Steel Welded Super Long Coiled Tube For Cable Industry
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT30 |
|
Detail Information |
|||
| Material: | S31700 / TP317 | Standard: | ASTM A269 / ASTM A213 / ASTM A312 Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Every Coil: | About 30Kgs Per / Coil |
| Type: | Seamless | Surface: | Bright Annealed / Pickled |
| High Light: | stainless steel coil pipe,coiled stainless tube |
||
Product Description

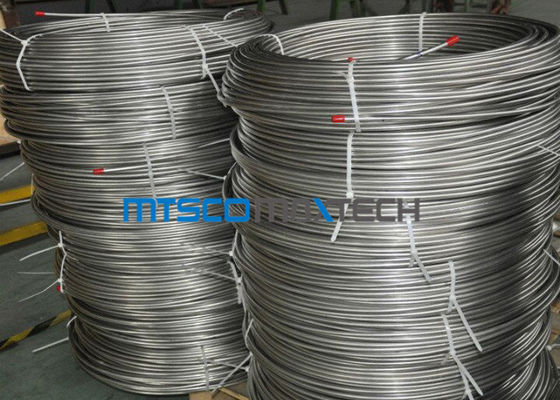

S31700 / TP317 12.7mm Bright Annealed Stainless Steel Seamless Coiled Tube
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
|
Grade
|
TP304 / 304L , 316 / 316L , 310S , 317L , 321 , 347H etc ( 300 series are the main products, if you have special material requirements, please tell us) |
| Standard | ASTM A 213 , ASTM A 269 , EN10216-5 |
|
Size |
OD : 4.76 - 25.4mm |
| WT : 0.71 - 2.11mm | |
| Length : >1000Meters | |
| 4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
| 6 * 1mm / 6 * 1.5mm | |
| 6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
| 7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
| 9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
| 10 * 1mm / 10 * 1.5mm | |
| 12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
| 12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
| 14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
| 15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
| 16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
| 19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
| 25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
MTSCO is a leading manufacturer who is specialized in seamless coiled tubing produce . Stainless steel seamless coiled tubing final surface is bright annealed. According to standard very strictly, tubes which produced by us always have correct OD and WT tolerance. They are very popular in military, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc. They can be used in many others industries also .
