S30400 / S30403 ASME SA269 Stainless Steel Welded Super Long Coiled Tube For Cable Industry
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT37 |
Detail Information |
|||
Material: | 1.4301 / 1.4404 | Standard: | ASTM A269 / ASTM A213 Dual Standards Etc |
---|---|---|---|
Delivery Condition: | Soft / Hard | Type: | Welded |
Surface: | Bright Annealed / Pickled | Feature: | Flame Retardant |
High Light: | stainless steel coil pipe,coiled stainless tube |
Product Description

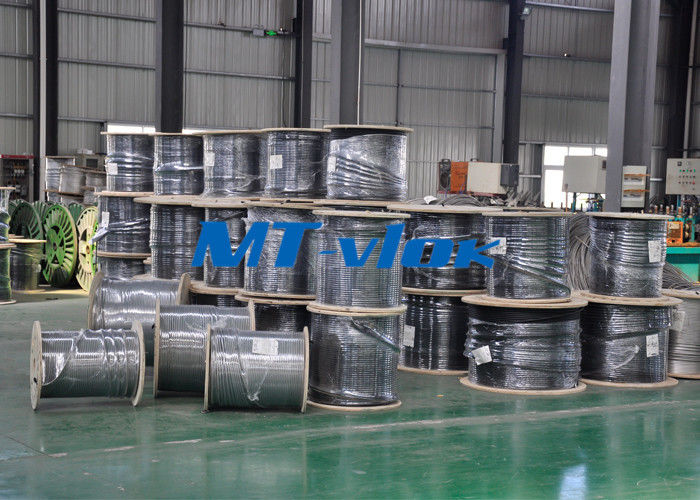

316L / 1.4404 Stainless Steel Welded Coiled Tube For Multi-core Tube
Where the multi-core coiled tubing used ?
Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.
Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 | |
HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 | |
HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 | |
HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 | |
HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 | |
HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 | |
HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 | |
HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 | |
HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 | |
HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 | |
HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 | |
HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 | |
HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 | |
HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 | |
HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 | |
HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 | |
HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 | |
HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 | |
HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 | |
HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 | |
HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 | |
HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 | |
HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |
The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
