Product Description

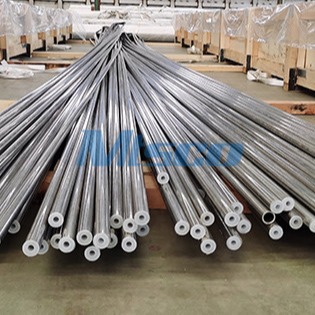

TP316L / 317L 31.8mm Stainless Steel Cold Rolled U Bend Tubing For Thermocouple
ASTM A 213 / A 213M ASME SA213 / SA213M Specification for Seamless Ferric and Austenitic Alloy -Steel Boiler , Su[perheater , and Heat-Exchanger Tubes
ASTM A 249 / A 249M Specification for Welded Austenitic Steel Boiler , Superheater , Heat-Exchanger , and Condenser tubes
Austenitic Materials:
TP310S(0Cr25Ni20, 2520)
TP304(0Cr18Ni9)
904L (00Cr20Ni25Mo4.5Cu , UNS N08904)
TP347(0Cr18Ni11Nb)
TP347H(1Cr19Ni11Nb)
TP321(0Cr18Ni10Ti)
TP304L(00Cr19Ni10)
TP316(0Cr17Ni12Mo2)
TP316L(00Cr17Ni14Mo2)
| Grade |
TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H |
|
Standard
|
ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ; ASTM A789 , etc |
| Size |
Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm |
| WT : 1.2-2.77mm |
| Length : According to customer needs up to 20m |
| Advantage |
Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment |
| Application |
Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 . |
| Package |
Plywood case |
ASTM A213 / A213M Chemical Composition :
| Elements |
304L(wt%) S30403 |
304(wt%) S30400 |
316L (wt%) S31603 |
316 (wt%) S31600 |
| (C) Carbon, max |
0.035 |
0.08 |
0.035 |
0.08 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 12.0 |
8.0 - 11.0 |
10.0 - 14.0 |
10.0 - 14.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
| (Fe) Iron |
Bal. |
Bal. |
Bal. |
Bal. |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A
|
MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
About MTSCO:
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
