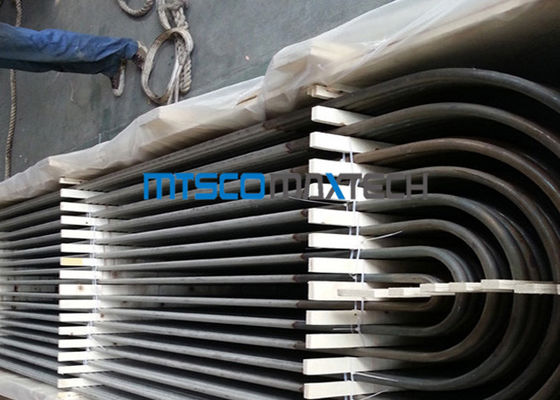

Alloy 400/600 Nickel Alloy U Bend Heat Exchanger Tube Annealed Surface
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 3700-9000USD/TON |
|---|---|---|---|
| Packaging Details : | Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOHET29 |
|
Detail Information |
|||
| Material: | TP304L / 1.4306 | Surface: | Pickling |
|---|---|---|---|
| U Bent Part Surface: | Annealing , Not Pickling | Delivery Condition: | Soft / Hard |
| NDT: | Eddy Current Or Hydraulic Test | Inspection: | 100% |
| High Light: | heat transfer tube,heat exchanger tubing |
||
Product Description
TP321 1.4541 Stainless Steel Annealed & Pickled Heat Exchanger Tubing For Boiler
|
Grade
|
TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H |
|
Standard
|
ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc |
| Size | OD:3.18-101.6mm |
| WT:0.5-20mm | |
| Length:Max.12M | |
| Advantage | Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment |
| Application |
Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant.The size can be made according to the customers requirements.High pressure boiler pipe applies to container,petrochemical and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650. |
| Package | Plastic in both ends, then packed in iron case |
Process :
1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage
|
Application |
a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger |
|
b) High temperature-resistant transmission fluid pipe in power station |
|
|
c) Ship with pressure pipe |
|
|
d) Exhaust purification device |
|
|
e) Construction and ornament |
|
|
f) solar industry , military , semiconductor etc |
MTSCO is a leading manufacturer who is specialized in seamless tubes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
