EN10216-5 Stainless Steel Seamless Tube ASME SA269 For Instrument Industry

Minimum Order Quantity : 500 Kgs Price : 4300-9800USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED& AD2000 Model Number: MTSCOSSST38

Detail Information

Material: 1.4301 / 1.4306 Surface: Bright Annealed
Technology: Cold Rolled Length: 5500mm To 6000mm Fixed Length
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
High Light:

ss Seamless Tubing

,

ss seamless tube

Product Description

EN10216-5 Stainless Steel Seamless Tube ASME SA269 For Fluid And Gas Industry





Item Description
Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18mm - 101.6mm
Wall Thickness 0.5mm -20mm
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method Cold Drawn or Cold Rolled





ASTM A269 Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti N(max)
316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N) 0.1



Application

a) For fluid & gas transport

b) Structure & machining

c) Petrochemical

d) Environmental protection

e) Electricity

f) Instrument industry etc

Advantages

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Price Item: FOB , CFR , CIF or as negotiation

Payment: TT, LC or as negotiation

Delivery Time: 30 working days after received your deposit ( Normally according to the order quantity )

Package: Iron case ; woven bag or as per customer’s requirement

Quality Requirement: Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable

Test NTD ( Ultrasonic test , Eddy Current test )

Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )

Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )

Chemical Analysis ( Photoelectric Emission Spectroscopic )

Main Market: Europe , Middle East , Southeast Asia , South America etc

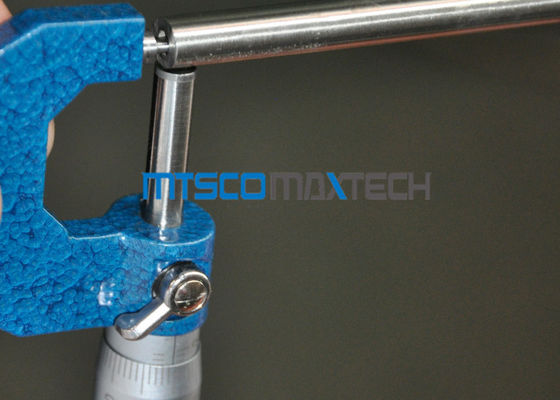

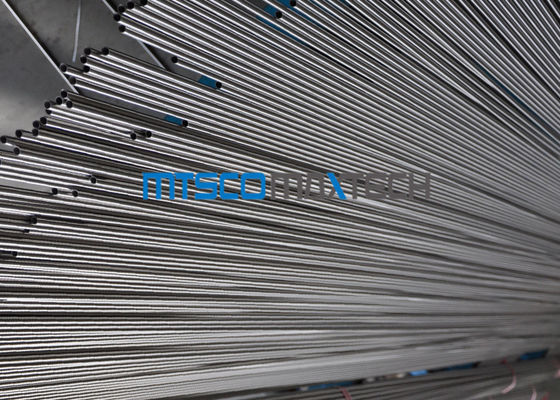

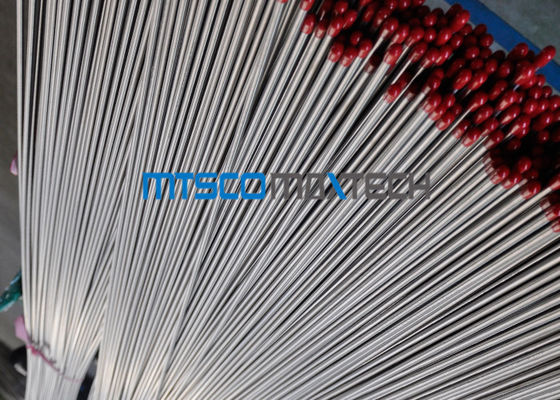

EN10216-5 Stainless Steel Seamless Tube ASME SA269 For Instrument Industry 0
