1.4306 / 1.4404 Seamless Stainless Steel Sanitary Tube For Construction / Ornament
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 6000-12000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOST32 |
Detail Information |
|||
Material: | Stainless Steel 300 Series | Technology: | Cold Drawn / Cold Rolled |
---|---|---|---|
Surface: | Polished 400 # , 320 # Etc | Delivery Condition: | Soft / Hard |
Inspection: | 100% | Type: | Seamless |
High Light: | sanitary tubing,sanitary piping |
Product Description

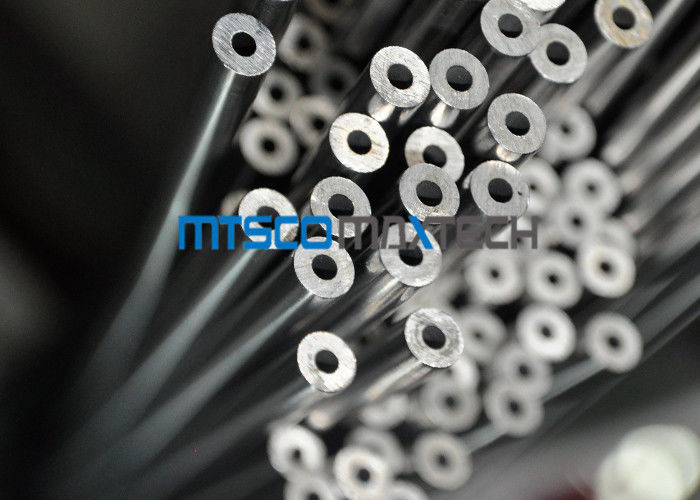

EN10216-5 X5CrNi18-10 6*1mm Stainless Steel Sanitary Tube With Bright Annealed Surface
Bright annealed sanitary tube has very clean inner surface . MTSCO has our own high technology , when tubes have been produced they already have cleaned inner surface , even though we haven’t cleaned them . Of cause , we’ll do clean later . So when we finished clean process , the tubes are totally clean enough !
Application :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
Chemical Composition
C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Specification :
Size |
OD : 4.76 - 25.4mm |
WT : 0.71 - 2.11mm | |
Length : >1000Meters | |
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
6 * 1mm / 6 * 1.5mm | |
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
10 * 1mm / 10 * 1.5mm | |
12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
MTSCO tubes can be used in General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear ) , fuild & gas & oil transport industries , pressure and heat transmission industries , construction and ornament industries , boiler and heat exchangers industries , decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) etc .
