S30400 / S30403 ASME SA269 Stainless Steel Welded Super Long Coiled Tube For Cable Industry
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT62 |
Detail Information |
|||
Material: | TP304 / 304L | Standard: | ASTM A269 / ASTM A213 Etc |
---|---|---|---|
Delivery Condition: | Soft / Hard | Every Coil: | About 30Kgs Per / Coil |
Type: | Seamless | Surface: | Bright Annealed / Pickled |
Highlight: | stainless steel coil pipe,seamless stainless steel pipe |
Product Description
1 / 2 Inch Sch10s Small Diameter Stainless Steel Welded Marine Multi-core Coiled Tubing
Material Grade :
American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
German Standard |
X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |

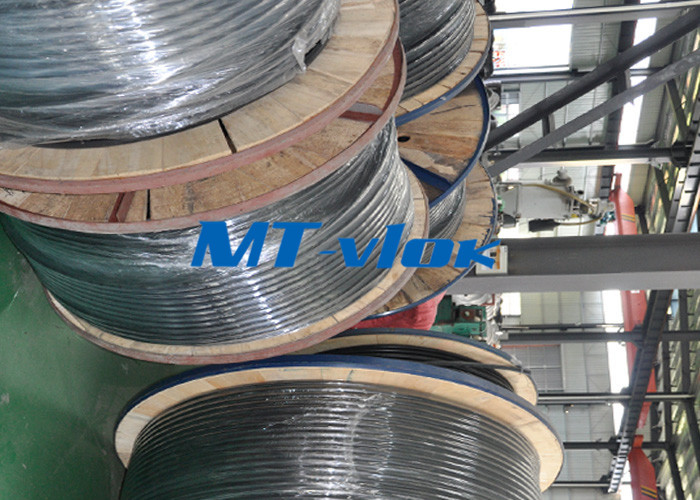

Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L. The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
Chemical Composition :
Material | ASTM A269 Chemical Composition % Max | ||||||||||
C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ |
Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 | |
HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 | |
HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 | |
HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 | |
HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 | |
HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 | |
HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 | |
HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 | |
HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 | |
HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 | |
HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 | |
HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 | |
HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 | |
HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 | |
HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 | |
HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 | |
HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 | |
HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 | |
HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 | |
HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 | |
HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 | |
HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 | |
HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |
