1.4306 / 1.4404 Seamless Stainless Steel Sanitary Tube For Construction / Ornament
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 6000-12000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOST42 |
|
Detail Information |
|||
| Material: | Stainless Steel 300 Series | Technology: | Cold Rolled |
|---|---|---|---|
| Surface: | Polished 400 # , 320 # Etc | Delivery Condition: | Soft / Hard |
| Inspection: | 100% | Type: | Seamless |
| High Light: | sanitary tubing,sanitary piping |
||
Product Description

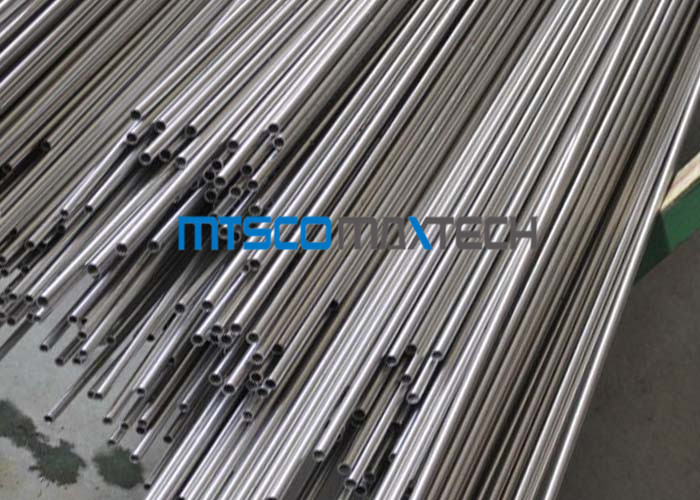

1 / 4 Inch Stainless Steel Sanitary Tube, ASTM A269 / ASME SA269 For Chemical Industry
|
Grade
|
TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H |
|
Standard
|
ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc |
| Size | OD:3.18-101.6mm |
| WT:0.5-20mm | |
| Length:Max.12M | |
| Advantage | Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment |
| Application |
Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant.The size can be made according to the customers requirements.High pressure boiler pipe applies to container,petrochemical and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650. |
| Package | Plastic in both ends, then packed in iron case |
| Terms & Conditions | Price Item | FOB , CFR , CIF or as negotiation |
| Payment | TT, LC or as negotiation | |
| Delivery Time | 30 working days after received your deposit ( Normally according to the order quantity ) | |
| Package | Iron case ; woven bag or as per customer’s requirement | |
| Quality Requirement | Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable | |
| Quality | Test | NTD ( Ultrasonic test , Eddy Current test ) |
| Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test ) | ||
| Metal Test ( Metallographic Analysis , Impact Test - High / low temperature ) | ||
| Chemical Analysis ( Photoelectric Emission Spectroscopic ) | ||
| Market | Main Market | Europe , Middle East , Southeast Asia , South America etc |
Application :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
ASTM A269 Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
