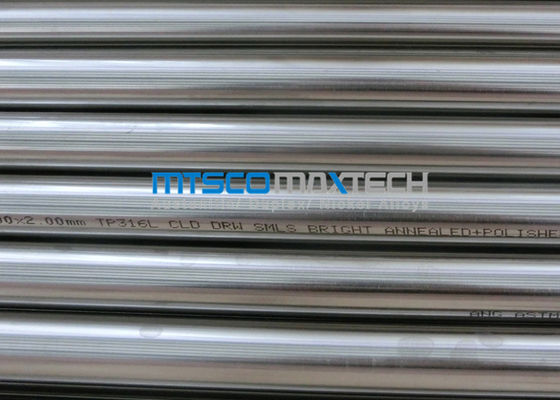

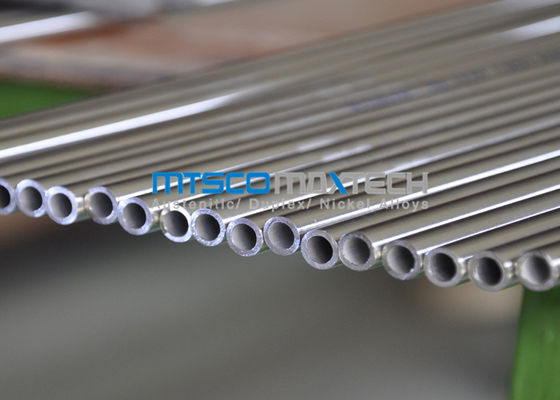

18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube

Minimum Order Quantity :	negotiable	Price :	6000-12000USD/TON
Packaging Details :	Iron Case / Plywood Case	Delivery Time :	30 Days
Payment Terms :	T / T ; L / C	Supply Ability :	300 Tons / Month

Place of Origin:	CHINA	Brand Name:	MTSCO
Certification:	ISO 9001 & PED & AD2000	Model Number:	MTSCOPSST43

Detail Information
Material:	Stainless Steel TP310S , 300 Series	End Cut:	Plain End ( PE ) / Bevel End ( BE )
Delivery Condition:	Soft / Hard	NDT:	Eddy Current Or Hydraulic Test
Inspection:	100%	Surface:	Annealing
Highlight:	Stainless Steel Precision Tubing , seamless stainless steel tubing

Product Description

18SWG TP309S / 310S Stainless Steel Precision Tube, ASTM A213 Seamless Tube

Product Description

Outer Diameter	3.18-101.6mm
Wall Thickness	0.5-20mm
NPS	1/8"-24"
Schedule	5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade	304/304L/316/316L/321/309S/310S, etc
Standard	ASTM A269, ASTM A312, etc
Application	used in Fluid and Gas Transport, Structure and Machining,etc
Certificates	ISO9001:2008, PED, BV
Process Method	Cold Drawn/ Cold Rolled
Surface Finish	Annealed/ Polished
Package	Woven bag for each piece, then packed in seaworthy wooden cases
Delivery Time	20-60 Days after receiving the deposit (Normally according to the order quantity)
Price Item	FOB, CIF or as negotiation
Payment	T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement	Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main Market	Europe, Middle East, Southeast Asia, South America, etc

18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube 0

ASTM A213 / A213M Chemical Composition :

Elements	TP310S(wt%) S31008
(C) Carbon, max :	0.08
(Mn) Manganese, max :	2
(P) Phosphorus, max :	0.045
(S) Sulfur, max :	0.03
(Si) Silicon, max :	1
(Ni) Nickel :	19.0 - 22.0
(Cr) Chromium :	24.0 - 26.0
(Mo) Molybdenum :	…
(Fe) Iron :	…
(Cu) Copper :	…
(N) Nitrogen :	…

Specification :

Size	OD : 4.76 - 25.4mm
	WT : 0.71 - 2.11mm
	Length : >1000Meters
	4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
	6 * 1mm / 6 * 1.5mm
	6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
	7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
	9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
	10 * 1mm / 10 * 1.5mm
	12 * 1mm / 12 * 1.5mm / 12 * 2mm
	12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
	14 * 1mm / 14 * 1.5mm / 14 * 2mm
	15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
	16 * 1mm / 16 * 1.5mm / 16 * 2mm
	19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
	25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm

MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
