TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings
TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings
Contact Now

TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSIT41

Detail Information
Material: TP347 / 347H Type: Seamless
Condition: Soft / Hard Surface: Bright Annealed
Length: 6400.8mm Technology: Cold Rolled
High Light:

stainless steel instrumentation tubing

,

Cold Drawn Tubing

Product Description

TP347 / 347H Stainless Steel Seamless Instrument Tubing With Bright Annealed Surface





Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180# , 320# , 400# , 600# , 800# . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At instrument industry , bright annealed tubes have their own important position .



Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc

Outer Diameter :3.18-101.6mm

Wall Thickness: 0.5-20mm

Length: Normally fixed length 6m , can as per customer’s requirement

Standard: ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .

Process Method: Cold Drawn or Cold Rolled

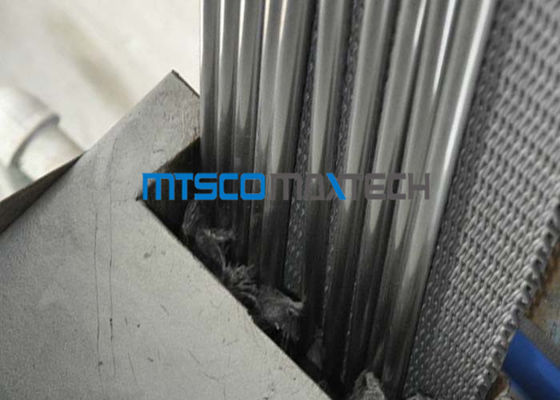

TP347 / 347H 0.5mm - 20mm Thin Wall Stainless Steel Pipe / Ss Pipe Fittings 0





Chemical Composition:



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75





Industry & Advantage Application a) General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
b) Fluid , gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler and heat exchangers
f) Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment





Tag:

Cold Drawn Tubing

stainless steel instrumentation tubing

instrument piping
