TP309S 310S Seamless Stainless Steel Instrument Tubing
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 4300-9800USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSIT45 |
|
Detail Information |
|||
| Material: | TP309S / 310S | Length: | 6096mm |
|---|---|---|---|
| Technology: | Cold Rolled | Standard: | America Standard / EN Standards |
| Condition: | Soft / Hard | ||
| High Light: | stainless steel instrumentation tubing,Cold Drawn Tubing |
||
Product Description

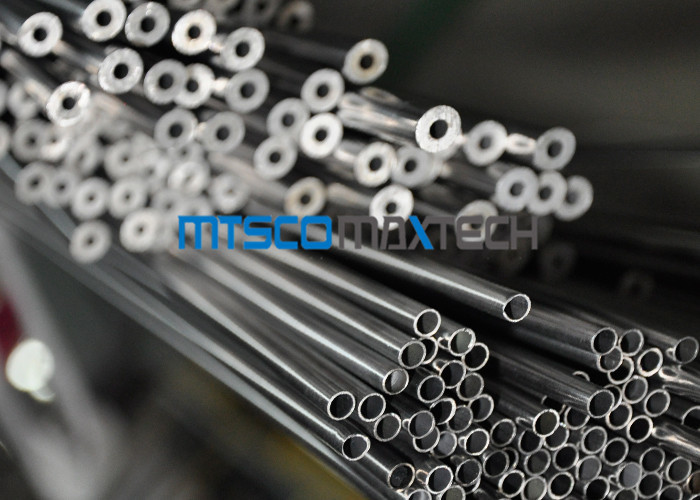

ASTM A269 / ASTM A213 TP309S / 310S Stainless Steel Seamless Instrument Tube For Transportation
ASTM A213 Standard Chemical Composition :
| Elements | TP310S(wt%) S31008 |
| (C) Carbon, max : | 0.08 |
| (Mn) Manganese, max : | 2 |
| (P) Phosphorus, max : | 0.045 |
| (S) Sulfur, max : | 0.03 |
| (Si) Silicon, max : | 1 |
| (Ni) Nickel : | 19.0 - 22.0 |
| (Cr) Chromium : | 24.0 - 26.0 |
| (Mo) Molybdenum : | … |
| (Fe) Iron : | … |
| (Cu) Copper : | … |
| (N) Nitrogen : | … |
Specification :
Size |
OD : 4.76 - 25.4mm |
| WT : 0.71 - 2.11mm | |
| Length : >1000Meters | |
| 4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
| 6 * 1mm / 6 * 1.5mm | |
| 6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
| 7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
| 9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
| 10 * 1mm / 10 * 1.5mm | |
| 12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
| 12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
| 14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
| 15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
| 16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
| 19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
| Outer Diameter | 3.18-101.6mm | |
| Wall Thickness | 0.5-20mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . | |
| Process Method | Cold Drawn or Cold Rolled | |
| Industry & Advantage | Application | a) For fluid & gas transport |
| b) Structure & machining | ||
| c) Petrochemical | ||
| d) Environmental protection | ||
| e) Electricity | ||
| f) Instrument industry etc | ||
| Advantages | a) Superior surface finish | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment | ||
MTSCO instrument products are made with high quality raw material. Advanced manufacture equipments and the exquisite craft, technology, characteristic of high precise size, good quality surface, stable performace, especially for the reliable durable performance under high temperature. It is widely applied in heat exchanger and condenser tubes, gas spring and lifter tubes, shock absorber tubes, automobile motocycle tubes, hydraulic tube.High pressure and super critical pressure steam boiler and so on.
