Cold Rolled Seamless Duplex Steel Pipe ASTM A789 / ASME SA789 2205 / 2507

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T/T ; L/C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODST44

Detail Information

Material: 2507 / S32750 Type: Seamless
Standard: ASTM A790 / ASTM A789 NDT: Eddy Current Or Hydraulic Test
Inspection: 100 % Length: 6096mm
High Light:

Cold Drawn Tube

,

Duplex Stainless Steel tube

Product Description

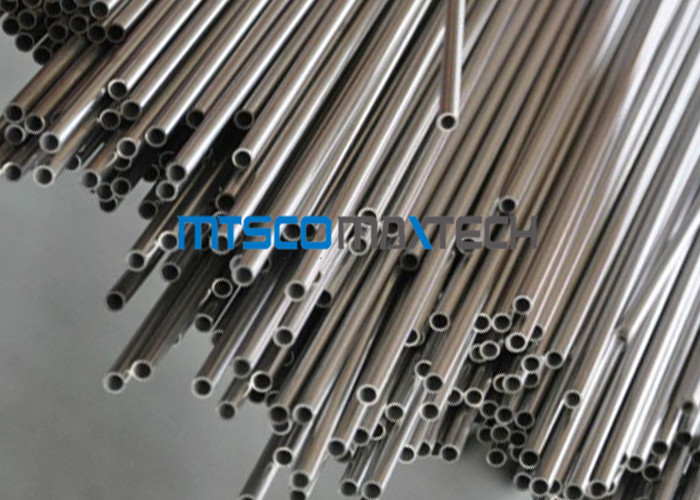

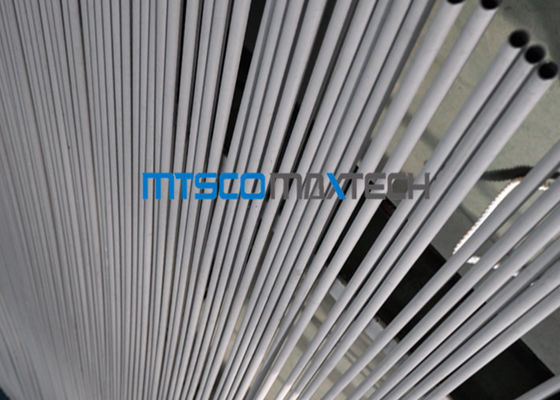

ASTM A789 / ASME SA789 2205 / 2507 Duplex Steel Tube With Cold Rolled







Item

Description

Basic Information

Material Grade

 S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc

Outer Diameter

3.18mm - 101.6mm

Wall Thickness

0.5mm - 20mm

Length

Normally fixed length 6m , can as per customer’s requirement

Standard

ASTM A789 ; ASTM A790 ; EN 10216-5 etc.

Process Method

Cold Drawn or Cold Rolled



ASTM A790 Standard
2205 / S32750 Elements
(C) Carbon , max : 0.030
(Mn) Manganese , max : 1.20
(P) Phosphorus , max : 0.035
(S) Sulfur , max : 0.020
(Si) Silicon , max : 0.80
(Ni) Nickel : 6.0 - 8.0
(Cr) Chromium : 24.0 - 26.0
(Mo) Molybdenum : 3.0 - 5.0
(Fe) Iron : --
(Cu) Copper , max : 0.5
(N) Nitrogen : 0.24 - 0.32







ASTM A790 2507 duplex steel pickling tube are always purchased by the clients who need high corrosion tubes .

Compared to stainless steel tubes , duplex steel tubes have more higher corrosion ability . They can be used in sea industry .



   Super duplex Stainless Steel is a highly alloyed , good performance duplex steel with a pitting resistance . Super Duplex offers good resistance to pitting and crevice corrosion . It is suited for use in aggressive environments . It also has good resistance to stress corrosion cracking in chloride and sour environments . And it has good resistance to erosion corrosion and corrosion fatigue .
   Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance .
   Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .



Cold Rolled Seamless Duplex Steel Pipe ASTM A789 / ASME SA789 2205 / 2507 0
