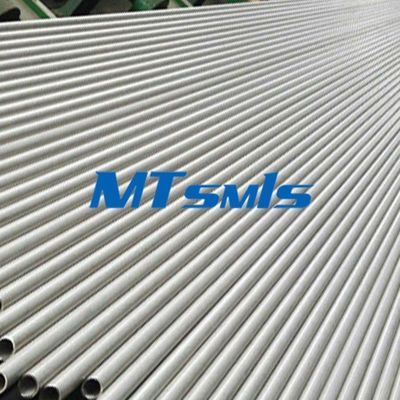

Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHT49

Detail Information

Material: 300 Series Stainless Steel Standard: ASTM A213/ASTM A269
Type: Seamless Surface: Bright Annealed/ Polished
Technology: Cold Drawn / Cold Rolled NDT: Eddy Current Or Hydraulic Test
Application: Gas / Oil Inspection: 100%
High Light:

S30400 Seamless Hydraulic Tube

,

S30400 cold drawn hydraulic tube

,

4 Inch Seamless Hydraulic Tube

Product Description

S30400 3/4 Inch Stainless Steel Seamless Hydraulic Tube For Gas / Oil​



Hydraulic Tube:



Hydraulic tubing provides a way to transport fluids in hydraulic systems from one component to another. They can be used in hydraulic systems when the conditions of the equipment allow it. Tubes can be ideally installed in equipment when there is no space limitation and the movement, noise and vibration of the machine is minimal.



Hydraulic tubing offers several advantages over hoses, as they can work in higher operating temperatures and required less maintenance.



Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 0



Hydraulic Tube Basic Information:



Grade:TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard: ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc

Size OD:3.18-101.6mm

WT:0.5-20mm

Length:Max.12M

Advantage: Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment

Application: Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package: Plastic in both ends, then packed in iron case



Hydraulic Tube Advantages:



a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment



Hydraulic Tube Applications:



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry



Hydraulic Tube Chemical Composition:



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 1





Who MTSCO IS?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 2



What products can MTSCO provide?





Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 3



Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 4



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



Why you choose MTSCO?



Cold Drawn 3/4 Inch Gas Oil S30400 Stainless Steel Seamless Hydraulic Tube 5



Thank you for your interest in MTSCO, we will continue to grow and do better!
