2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOFPF78

Detail Information

Material: Stainless Steel Kinds: Straight Or Reducing
Standard: ASME B16.9 Type: BW
Technics: Forged Application: Oil & Gas Industry , Chemical Industry , Electric Power , Boiler And Heat Exchanger , Machinery , Metallurgy, Sanitary Construction Etc .
Package: Plywood Case PMI: 100%
High Light:

ASME B16.9 SS Cross Pipe Fitting

,

ASME B16.9 Cross Pipe Fitting

,

F304L SS Cross Pipe Fitting

Product Description

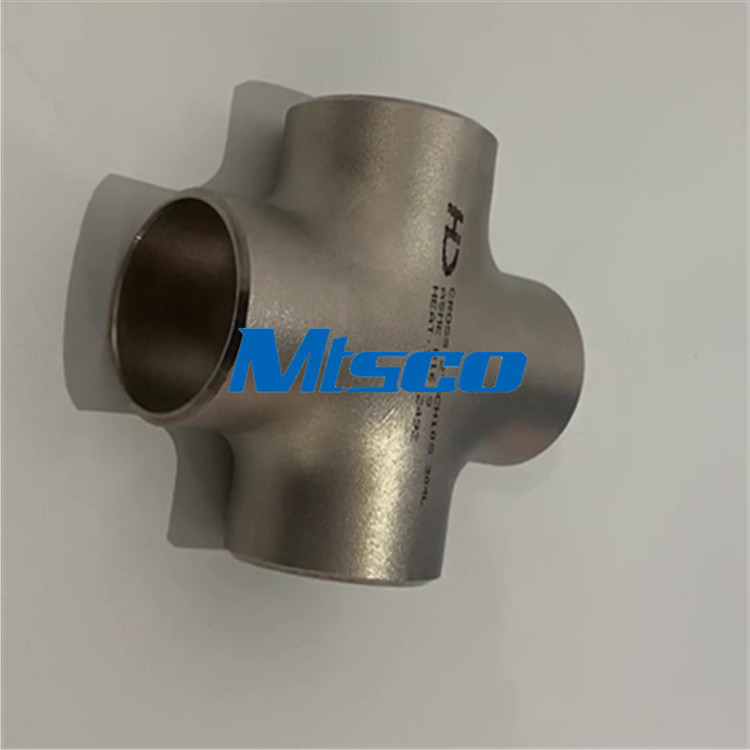

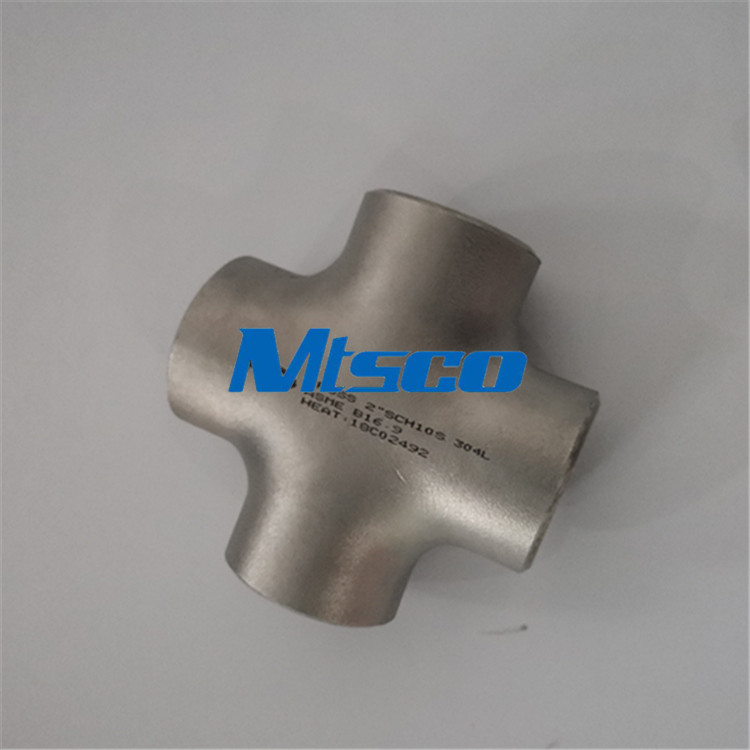

2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting



Stainless Steel Cross:



Stainless steel cross, which refers to a kind of water pipe fittings made of stainless steel, is used in the pipeline branch.



Stainless steel cross has equal diameter and reducer, equal diameter cross has the same size of the receiver end; reducer cross has the same size of the main receiver, while the branch pipe receiver size is smaller than the main receiver size.



2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 0



Stainless Steel Cross Material Grade:



Material Grade

WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc

Size

1/2" to 48" Sch 5S to XXS

Standard

ASME B16.9 etc .

Process Method

Forged / Casting



Stainless Steel Cross Basic Information:



1 . Commodity: Concentric Reducer & Eccentric Reducer, Reducing Tee & Equal Tee, Elbow 45° , 90° , 180° , Cross , Cap , etc
2 . Process Method : Cold Forming
3 . Materials : Stainless Steel , Duplex Steel , etc
4 . Standards : ASME / ANSI B16.9 , B16.28 , ASTM A403 , DIN 2605 , DIN 2609 , DIN 2615 , etc
5 . Size Range :
                       Seamless type: 1/2’’-48’’, DN15-DN50000
                       Welded type: 1/2’’-20’’ DN15-DN1200
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy, sanitary construction etc .



Stainless Steel Tee Chemical Composition:



Elements WP304L(wt%) / CR304L / S30403 304(wt%) / CR304 / S30400 316L (wt%) / CR316L /S31603 316 (wt%) / CR316 / S31600
(C) Carbon, max 0.03 0.08 0.03 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A




About MTSCO:



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 1



What products can MTSCO provide?





2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 2



2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 4



2"×SCH10S F304L ASME B16.9 Stainless Steel Cross Pipe Fitting 5



Thank you very much for reading this, I wonder if my presentation will help you with your current problem? Looking forward to hearing from you!
