ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection

Minimum Order Quantity : negotiable Packaging Details : Plywood Case
Delivery Time : 30 Days Payment Terms : T / T ; L / C
Supply Ability : 1000 Tons / Year
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOCF18

Detail Information

Product Name: Hexagonal Bushing Material: 304/316
Size: 1/4"-6" Standard: ASTM A351/A351M
Surface: SR/ Polish Inspection: Dimension/ Thread/ Material/ NDT
Package: Cardboard And Wooden Boxes Application: Water, Gas, Air, Oil, Steam Pipe System
High Light:

ASTM A351 hex head bushing

,

351M hex head bushing

,

NDT reducing hex bushing

Product Description

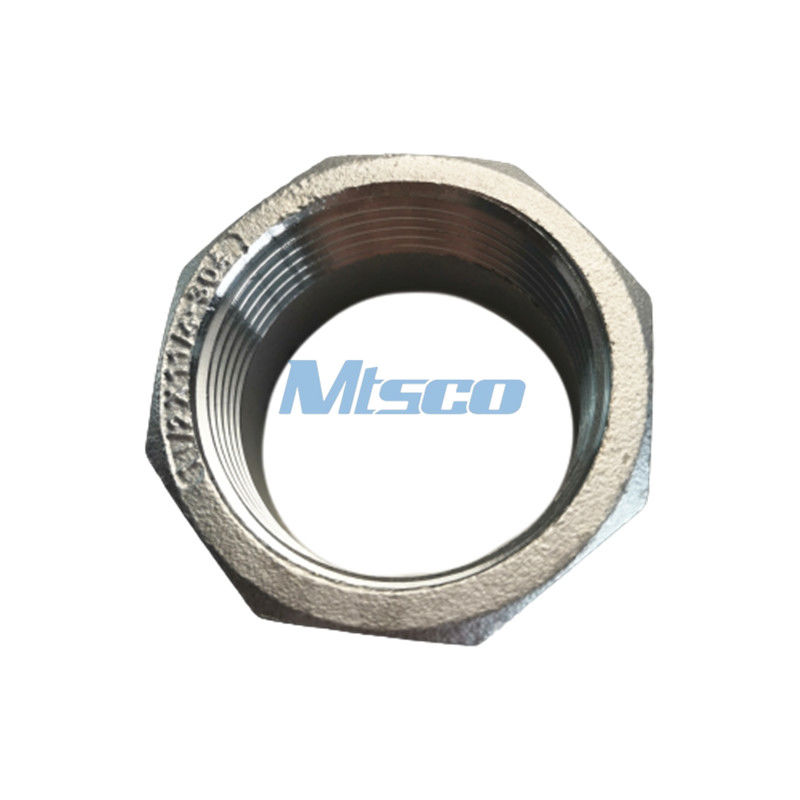

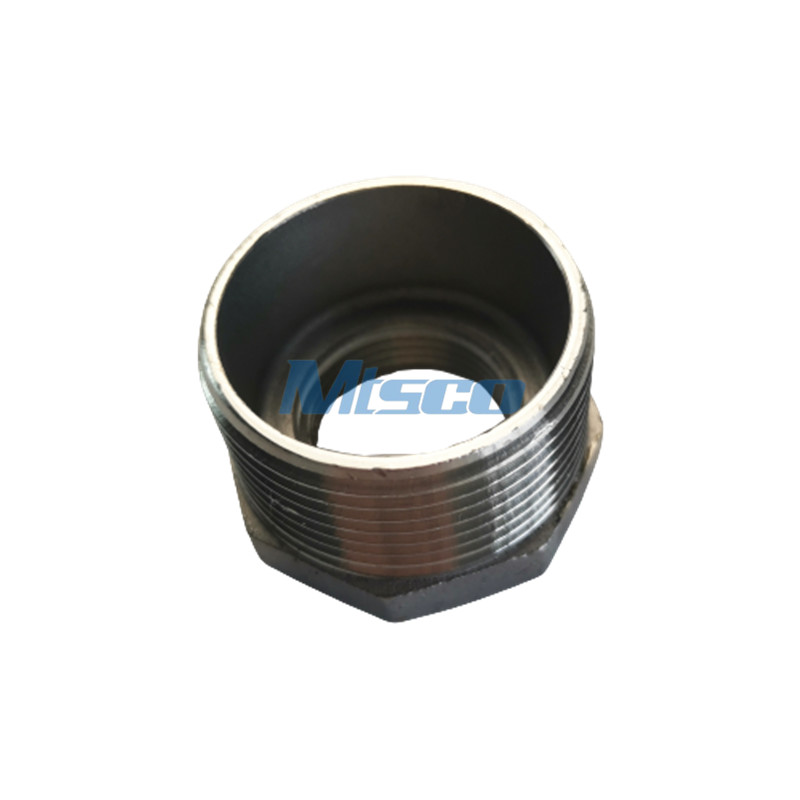

ASTM A351/351M Casting Pipe Fitting Hexagonal Bushing With Thread Connection





Hexagonal Bushing:



Hexagonal bushings are used to reduce the size of female threads from a larger to a smaller diameter. Hex Bushings are threaded fittings that have male threads on the outside and female threads on the inside with a hex head used to tighten the fitting into the threaded opening.





Hexagonal Bushing Product Description:



Product name Hexagon Bushing
Standard British Standard American Standard DIN Standard
Material 304/316 stainless steel Casting Fitting

Standard/

Dimension Standard

ASTM A351/A351M

ISO4144,MSS-SP-114

Class 150#
Size 1/2"-6"
Model Elbow, Tees, Socket, Hex nipple, Square plug, Bushing, Union, Hose nipple, Reducing socket, Cross, Street elbow, Round/Hex cap, Reducing Elbow, Reducing tee, Half nipple, Reducing hex nipple, Coupling, Reducing Coupling, Barrel Nipple.....
Application of casting fitting Suitable for water, gas, air, oil, steam pipe system
Package Cardboard and wooden boxes



Hexagonal Bushing Chemical Composition:



Element Type 304 (%)
Carbon 0.08 max.
Manganese 2.00 max.
Phosphorus 0.045 max.
Sulfur 0.03 max.
Silicon 0.75 max.
Chromium 18.00-20.00
Nickel 8.00-10.50
Nitrogen 0.10 max.
Iron Balance



Do you know Casting?



Casting is in which liquid material is typically poured into a mold containing a hollow cavity of the desired shape and then solidified. It is a manufacturing process. The solidified part is also known as the casting, which is ejected or broken out of the mold to complete the process. The casting material is usually metal or many kinds of time solidifying materials that mix many components together and then solidify; Such as epoxy resin, concrete, mortar and clay. Castings are difficult or uneconomical to make by other methods, so they are usually used to make complex shapes. Heavy equipment, such as machine tool beds, ship propellers, etc., which can be easily cast to the required dimensions rather than manufactured by joining several small pieces



Casting has 7,000 year old development. The oldest surviving casting is a bronze frog from 3200 B.C.



ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection 0



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving  stainless steel customers from more than 100 countries and regions.



ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection 1



What products can MTSCO provide?





ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection 2



ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



ASTM A351/351M Hex Head Bushing Reducing Hex Bushing Thread Connection 4



For more information, you are welcome to contact us by email. Thank you for your interest.
