ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling

Minimum Order Quantity : negotiable Packaging Details : Plywood Case
Delivery Time : 30 Days Payment Terms : T / T ; L / C
Supply Ability : 1000 Tons / Year
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOCF23

Detail Information

Product Name: Casting Fitting Coupling Material: 304/316/CF8/CF8M
Size: 1/8”-8” Standard: ASTM A351/A351M
Thread: NPT, NPSC, BSPP, BSPT Etc Surface: SR/ Polish
Inspection: Dimension/ Thread/ Material/ NDT Package: Cardboard And Wooden Boxes
Class: 150# Application: Water, Gas, Air, Oil, Steam Pipe System
High Light:

150PSI Casting Pipe Fittings

,

ASTM A351 Casting Pipe Fittings

,

150PSI Water Transportation Coupling

Product Description

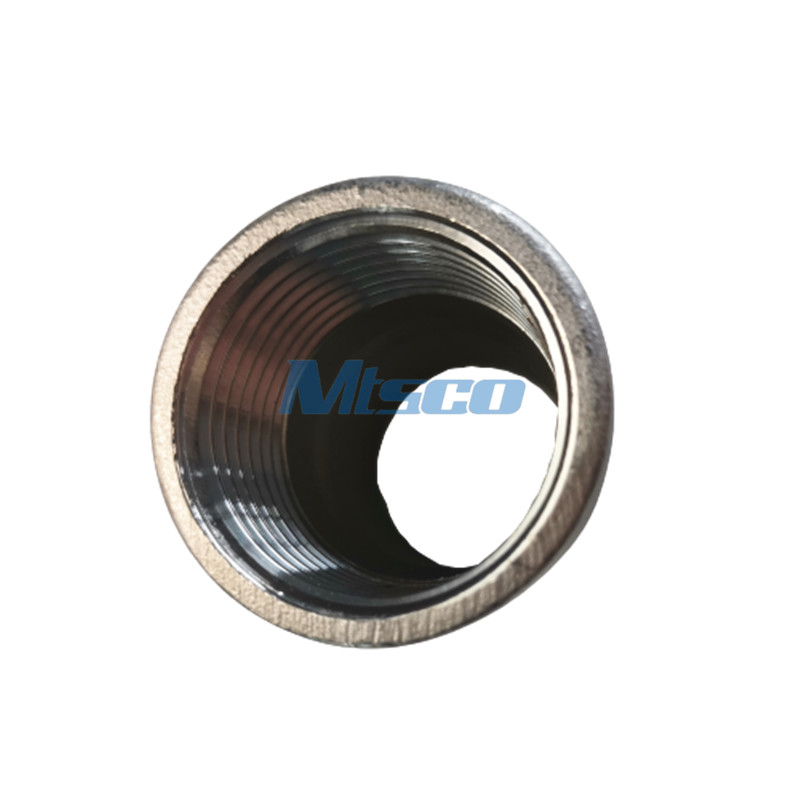

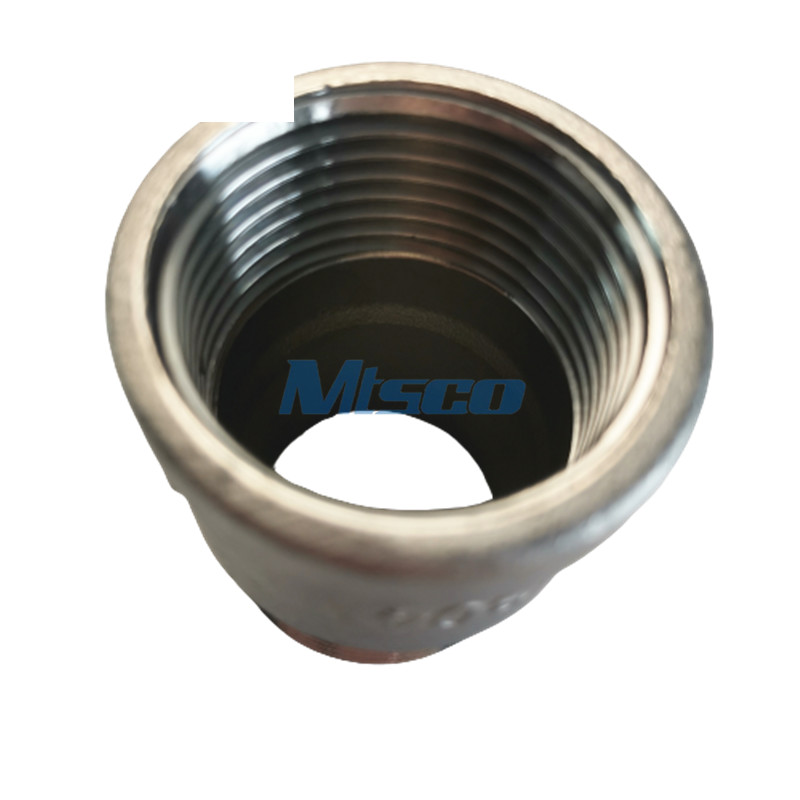

316 Casting Fitting For Water Transportation Coupling 150PSI





Product Name: Casting Fitting Coupling

Material: 304/316 stainless steel

Standard/Dimension Standard: ASTM A351/A351M, ISO4144,MSS-SP-114

Size: 1/8”-8”

Class: 150#

Connection: Male Female Thread Connection

Shape: Equal/ Reducing

Model: Elbow,Tees,Socket, Hex nipple, Square plug, Bushing, Union, Hose nipple, Reducing socket, Cross, Street elbow, Round/Hex cap, Reducing elbow, Reducing tee, Half nipple, Reducing hex nipple, Coupling, Reducing Coupling, Barrel Nipple.....

Thread: NPT, NPSC, BSPP, BSPT etc



Application

Suitable for water, gas, air, oil, steam pipe system.

Package

Wooden case

Inspection

Dimension inspection, thread inspection, material inspection and non-destructive inspection





Model: Elbow,Tees,Socket, Hex nipple, Square plug, Bushing, Union, Hose nipple, Reducing socket, Cross, Street elbow, Round/Hex cap, Reducing elbow, Reducing tee, Half nipple, Reducing hex nipple, Coupling, Reducing Coupling, Barrel Nipple.....



What is Coupling?



Pipe coupling (copper sweat)

A coupling connects two pipes. If their sizes differ, the fitting is known as a reducing coupling, reducer, or an adapter. There are two types of couplings: "regular" and "slip". A regular coupling has a small ridge or stop internally, to prevent over-insertion of a pipe, and thus under-insertion of the other pipe segment (which would result in an unreliable connection).



A slip coupling (sometimes also called a repair coupling) is deliberately made without this internal stop, to allow it to be slipped into place in tight locations, such as the repair of a pipe that has a small leak due to corrosion or freeze bursting, or which had to be cut temporarily for some reason. Since the alignment stop is missing, it is up to the installer to carefully measure the final location of the slip coupling to ensure that it is located correctly.

ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling 0

Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving  stainless steel customers from more than 100 countries and regions.



ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling 1



What products can MTSCO provide?





ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling 2



ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling 4



For more information, you are welcome to contact us by email. Thank you for your interest.
