TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing

Certification
Good quality Duplex Steel Pipe for sales
Good quality Duplex Steel Pipe for sales
Pipes are really good . Good surface , good quality , also good delivery time . We trust the sales guy . Very patience .

—— Ugur - Turkey

Seamless coiled tubing is good . Regularly order is very worthful .

—— Gerardo Romero - America

We always purchase polished tubes from MTSCO , really good quality. Nice to cooperate with MTSCO . A good partner .

—— Paolo - Italy

I'm Online Chat Now

TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing

China TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing supplier
TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing supplier TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing supplier TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing supplier TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing supplier

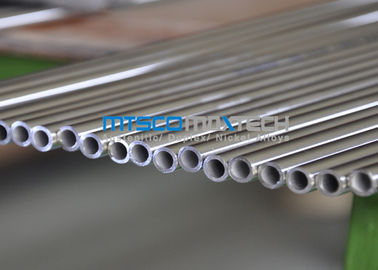

Large Image :  TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing

Product Details:

Place of Origin: CHINA
Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000
Model Number: MTSCOHT08

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Iron Case / Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Contact Now
Detailed Product Description
Material: TP304 , TP316 Surface: Polished 400 #
Type: Seamless NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Technology: Cold Drawn

TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing





   Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .



Applications :



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry



Grade

304 , 304L , 304H , 310S , 316 , 316L , 316Ti , 321 , 321H , 347 , 347H , etc

Standard

ASTM A270 ; ASTM A269 ; ASTM A312 ;ASTM A249 ; EN10216-5 , ect .

Size

OD : 3.18 - 101.6mm

WT : 0.5 - 20mm

Length : 1m to 12m or as per customers’ requirement

Advantage

Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment



Specification :











Size

OD : 4.76 - 25.4mm

WT : 0.71 - 2.11mm

Length : >1000Meters

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm



Chemical Composition :



ASTM A213 / A213M Standard :

Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



TP304 , TP316 Stainless Steel Hydraulic Tubing , Mesh Belt Furnace Annealing



MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
