ASTM A312 TP304 Stainless Steel Seamless Pipe With BA Surface
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 4300-9800USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOHT10 |
|
Detail Information |
|||
| Material: | TP310S , 300 Series Stainless Steel | Surface: | Polished 400 # 320 # Etc |
|---|---|---|---|
| Type: | Seamless | NDT: | Eddy Current Or Hydraulic Test |
| Inspection: | 100% | Technology: | Cold Drawn / Cold Rolled |
| High Light: | hydraulic tube,hydraulic pipe |
||
Product Description

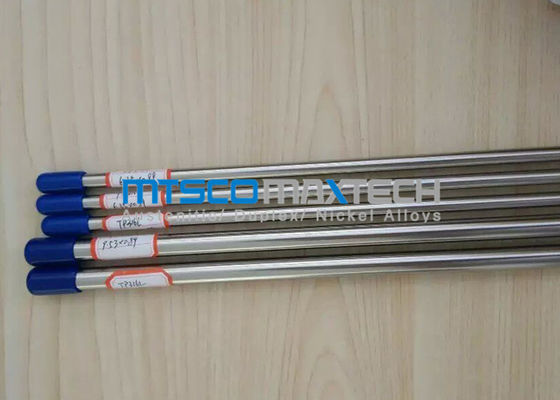

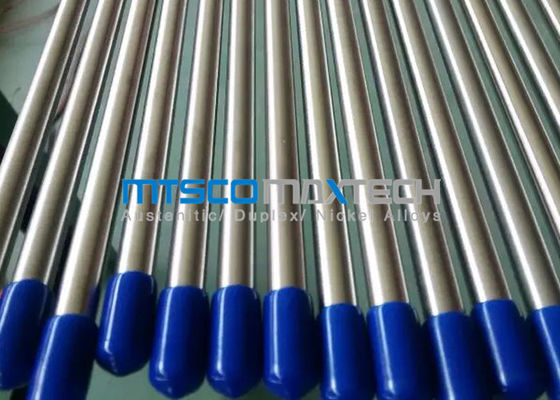

TP310S Stainless Steel Hydraulic Tubing , Bright Annealed Tubing
ASTM A213 / A213M Standard Chemical Composition :
| Elements | TP310S(wt%) S31008 |
| (C) Carbon, max : | 0.08 |
| (Mn) Manganese, max : | 2 |
| (P) Phosphorus, max : | 0.045 |
| (S) Sulfur, max : | 0.03 |
| (Si) Silicon, max : | 1 |
| (Ni) Nickel : | 19.0 - 22.0 |
| (Cr) Chromium : | 24.0 - 26.0 |
| (Mo) Molybdenum : | … |
| (Fe) Iron : | … |
| (Cu) Copper : | … |
| (N) Nitrogen : | … |
Applications :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry
Specification :
|
|
OD : 3.18 - 101.6mm |
|
WT : 0.5- 20mm |
|
|
Length : >1000Meters |
|
|
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm |
|
|
6 * 1mm / 6 * 1.5mm |
|
|
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm |
|
|
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm |
|
|
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm |
|
|
10 * 1mm / 10 * 1.5mm |
|
|
12 * 1mm / 12 * 1.5mm / 12 * 2mm |
|
|
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm |
|
|
14 * 1mm / 14 * 1.5mm / 14 * 2mm |
|
|
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm |
|
|
16 * 1mm / 16 * 1.5mm / 16 * 2mm |
|
|
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm |
|
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
