ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3

China ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3 supplier
ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3 supplier ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3 supplier ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3 supplier ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3 supplier

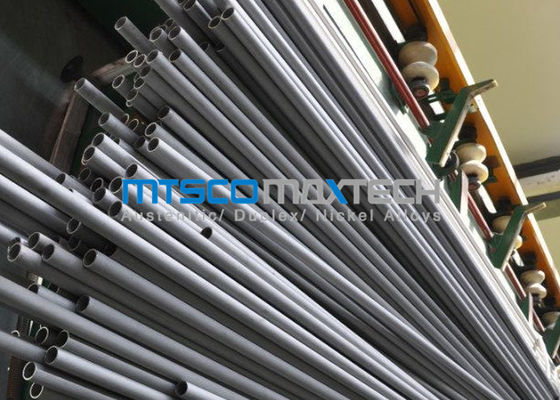

Large Image :  ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3

Product Details:

Place of Origin: CHINA
Brand Name: MTSCO
Certification: ISO 9001 & PED
Model Number: MTSCOSSST15

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Iron Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Contact Now
Detailed Product Description
Material: Stainless Steel 300 Series , 316Ti , 317L , 347 , 321 Standard: EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc
Surface: Annealing NDT: Eddy Current Or Hydraulic Test
Type: Seamless Delivery Condition: Soft / Hard

ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3



Item

Description

Basic Information

Material Grade

TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc

Outer Diameter

6.00mm - 48.00mm

Wall Thickness

0.71mm - 2.11mm

Length

Normally fixed length 6m , can as per customer’s requirement

Standard

ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .

Process Method

Cold Drawn or Cold Rolled



ASME SA213 / A213 : Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler , Superheater and Stainless Steel Heat Exchanger Tubes .

ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler , Superheater Heat-Exchanger , and Condenser Tubes .



Application :



1 . For fluid & gas transport

2 . Petrochemical

3 . Environmental protection

4 . Structure & Machining

5 . Electricity

6 . Instrument industry etc



Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91



EN10216-5 Standard Chemical Composition :



Steel Grade C Si Mn P S N Cr Cu Mo Nb Ni Ti Others
max     max max
Steel Name Steel Number
X2CrNi19-11 1.4306 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 18.00 - 20.00 - - - 8.00 - 10.00 - -
X5CrNi18-10 1.4301 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.50 - - - 8.00 - 10.50 - -
X6CrNiTi18-10 1.4541 0.08 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.00 - - - 9.00 - 12.00 5xC to 0.70 -
X6CrNiNb18-10 1.4550 0.08 ≤1 ≤2 0.04 0.015 - 17.00 - 19.00 - - 10xC to 1.00 9.00 - 12.00 - -
X2CrNiMo17-12-2 1.4404 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X5CrNiMo17-12-2 1.4401 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X6CrNiMoTi17-12-2 1.4571 0.08 ≤1 ≤2 0.04 0.015 - 16.50 - 18.50 - 2.00 - 2.50 - 10.50 - 13.50 5xC to 0.70 -



ASTM A213 / A213M Standard Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



ASTM A312 / A312M Standard Chemical Composition :



Elements 304L(wt%) 316L (wt%)
(C) Carbon, max 0.035 0.035
(Mn) Manganese, max 2 2
(P) Phosphorus, max 0.045 0.045
(S) Sulfur, max 0.03 0.03
(Si) Silicon, max 1 1
(Ni) Nickel 8.0 - 13.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 16.0 - 18.0
(Mo) Molybdenum N/A 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A N/A



ASTM A213 / A312 Stainless Steel Seamless Tube , Cold Drawn Tube , EN10216-5 TC 1 D4 / T3
