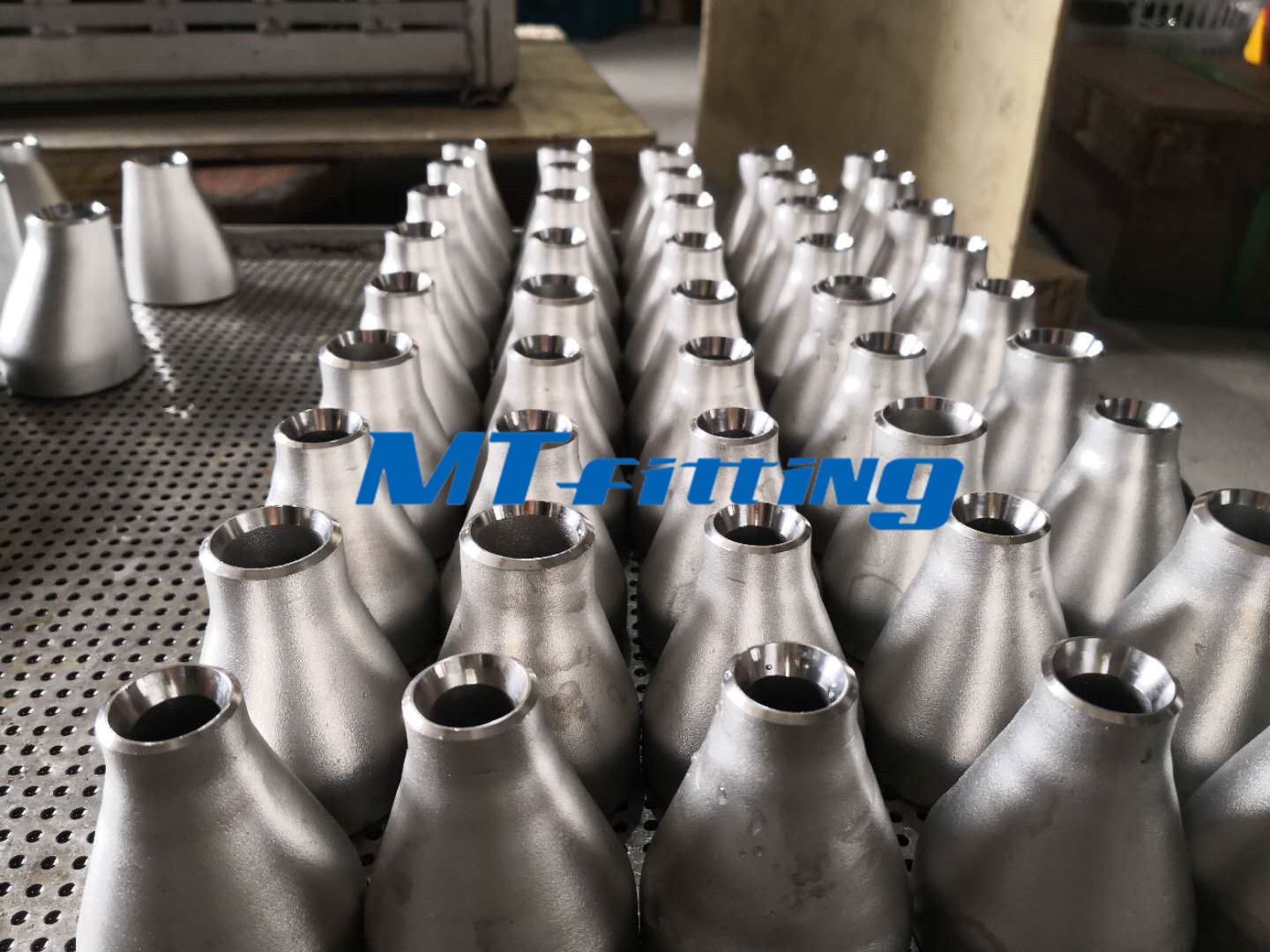

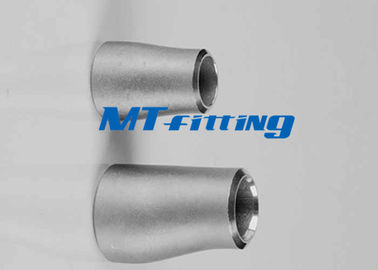

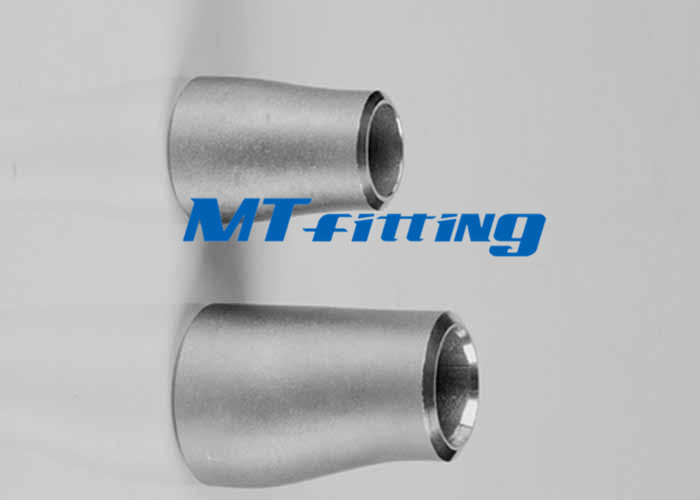

ASTM A403 Stainless Steel Reducer Cold Forming Pipe Fitting For Connection

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED & AD2000 Model Number : MTSCOFPF32

Detail Information

Material: Stainless Steel Kinds: Concentric Or Eccentric
Type: Seamless Package: Plywood Case
PMI: 100% Standard: ASTM A403 / ASTM A182

Product Description

ASTM A403 Stainless Steel Reducer Pipe Fitting For Connection







Material Grade

WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc

Size

1/2" to 48" Sch 5S to XXS

Standard

ASTM A403, ASTM A182  etc .

Process Method

Forged / Casting









ASTM A182 / A182M Standard Chemical Composition :



Elements 304L(wt%) / F304L / S30403 304(wt%) / F340 / S30400 316L (wt%) / F316L /S31603 316 (wt%) / F316 / S31600 310 (wt%) / F310 / S31000
(C) Carbon, max 0.03 0.08 0.03 0.08 0.25
(Mn) Manganese, max 2 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1 1
(Ni) Nickel 8.0 - 13.0 8.0 - 11.0 10.0 - 15.0 10.0 - 14.0 19.0 - 22.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0 24.0 - 26.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0 N/A
(Fe) Iron N/A N/A N/A N/A N/A
(Cu) Copper N/A N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A N/A

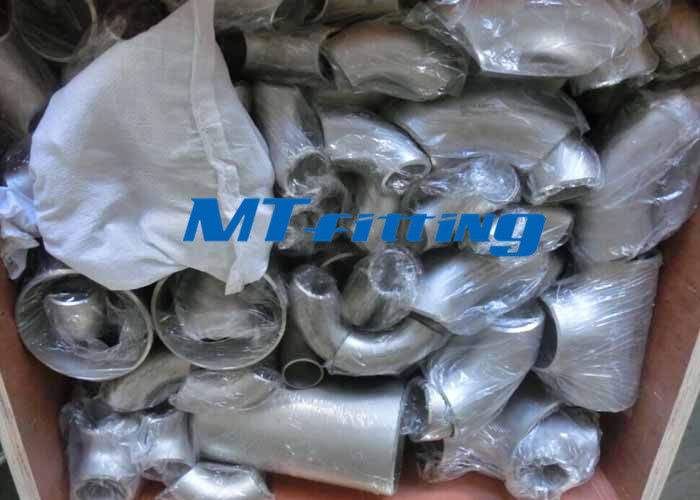

1 . Commodity: Concentric Reducer & Eccentric Reducer , Reducing Tee & Equal Tee, Elbow 45° , 90° , 180° , Cross , Cap , etc
2 . Process Method : Cold Forming
3 . Materials : Stainless Steel , Duplex Steel , etc
4 . Standards : ASME / ANSI B16.9 , B16.28 , ASTM A403 , ASTM A182, DIN 2605 , DIN 2609 , DIN 2615 , etc
5 . Size Range :
Seamless type: 1/2’’-48’’, DN15-DN50000
Welded type: 1/2’’-20’’ DN15-DN1200
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .



ASTM A403 Stainless Steel Reducer Cold Forming Pipe Fitting For Connection





MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .



ASTM A403 Stainless Steel Reducer Cold Forming Pipe Fitting For Connection
