Product Description

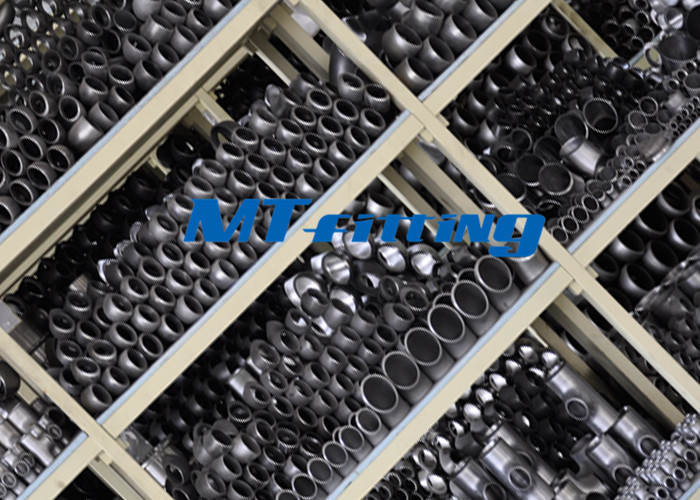

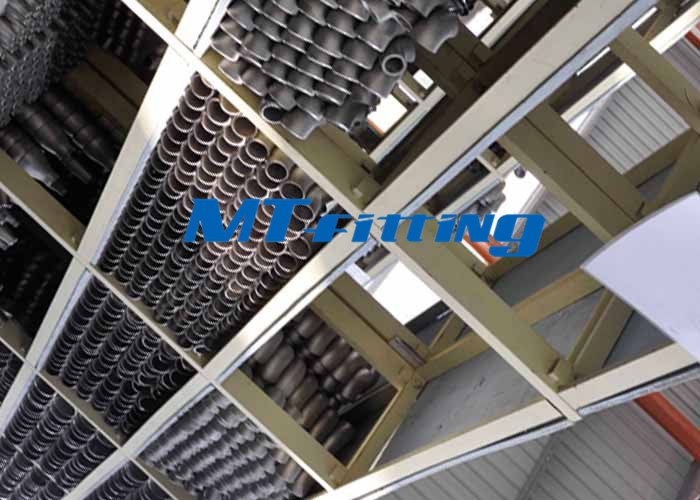

ASME / ANSI B16.9 S31803 / S32750 Duplex Steel Concentic / Eccentric Reducer Pipe Fitting
|
Material Grade
|
S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc
|
|
Size
|
1/2" to 48" Sch 5S to XXS
|
|
Standard
|
ASTM A403, ASTM A182 etc .
|
|
Process Method
|
Forged / Casting
|
| 1 . Commodity: Concentric Reducer & Eccentric Reducer , Reducing Tee & Equal Tee, Elbow 45° , 90° , 180° , Cross , Cap , etc |
| 2 . Process Method : Cold Forming |
| 3 . Materials : Stainless Steel , Duplex Steel , etc |
| 4 . Standards : ASME / ANSI B16.9 , B16.28 , ASTM A403 , ASTM A182, DIN 2605 , DIN 2609 , DIN 2615 , etc |
| 5 . Size Range : |
| Seamless type: 1/2’’-48’’, DN15-DN50000 |
| Welded type: 1/2’’-20’’ DN15-DN1200 |
| 6 . Tolerances : according to the specification or customer’s request and drawings |
| 7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc . |
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item:FOB , CFR , CIF or as negotiation
Payment:T/T, LC or as negotiation
Delivery Time :30 working days after received your deposit ( Normally according to the order quantity )
Package:Iron case ; woven bag or as per customer’s requirement
Quality Requirement:Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Test:
NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
ASTM A182 / A182M Standard Chemical Composition :
| Elements |
304L(wt%) / F304L / S30403 |
304(wt%) / F340 / S30400 |
316L (wt%) / F316L /S31603 |
316 (wt%) / F316 / S31600 |
310 (wt%) / F310 / S31000 |
| (C) Carbon, max |
0.03 |
0.08 |
0.03 |
0.08 |
0.25 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 13.0 |
8.0 - 11.0 |
10.0 - 15.0 |
10.0 - 14.0 |
19.0 - 22.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
24.0 - 26.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
N/A |
| (Fe) Iron |
N/A |
N/A |
N/A |
N/A |
N/A |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A |
N/A |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
