ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Packaging Details : | Plywood Case |
---|---|---|---|
Delivery Time : | 30 Days | Payment Terms : | T / T ; L / C |
Supply Ability : | 1000 Tons / Year |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOCF17 |
Detail Information |
|||
Product Name: | Casting Fitting Reducing Elbow | Material: | 304/316/CF8/CF8M |
---|---|---|---|
Size: | 1/8”-8” | Standard: | ASTM A351/A351M |
Thread: | NPT, NPSC, BSPP, BSPT Etc | Surface: | SR/ Polish |
Inspection: | Dimension/ Thread/ Material/ NDT | Package: | Cardboard And Wooden Boxes |
Class: | 150# | Application: | Water, Gas, Air, Oil, Steam Pipe System |
High Light: | CF8M 90 Degree Reducing Elbow,NPTF 90 Degree Reducing Elbow,NPTF reducing elbow pipe fittings |
Product Description

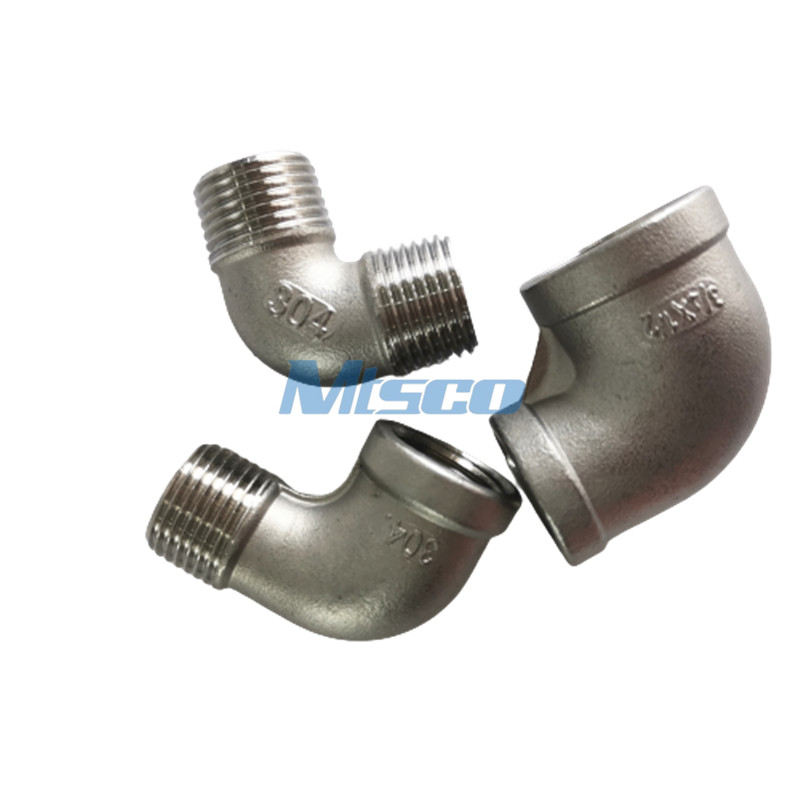

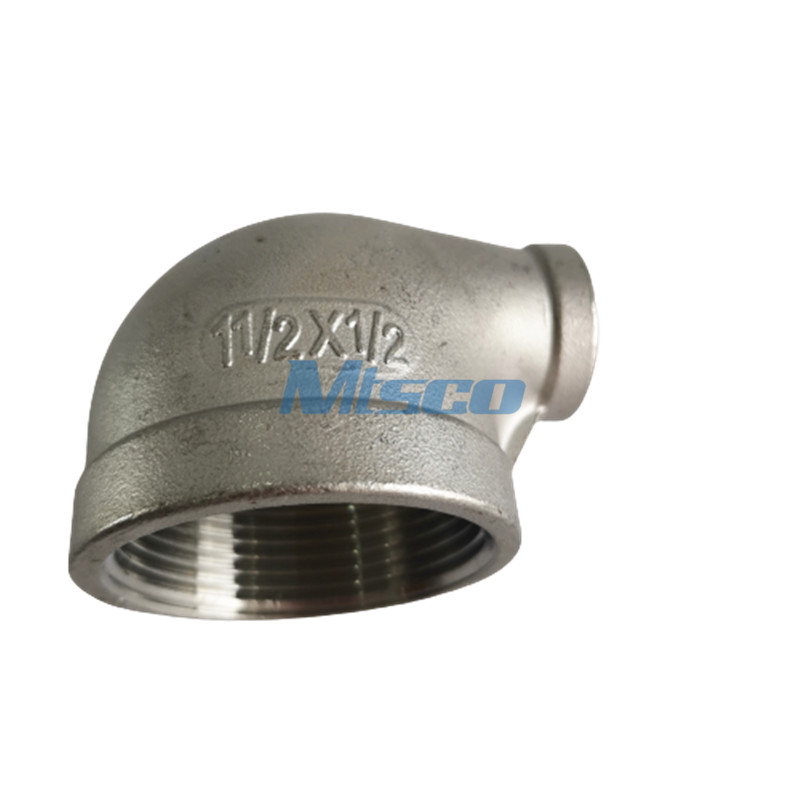

304 Casting Fitting NPTF Reducing Elbow For Gas Pipe With A&P Surface
Product Name: Casting Fitting Reducing Elbow
Material: 304/316/CF8/CF8M
Size: 1/8”-8”
Standard: ASTM A351/A351M
Thread: NPT, NPSC, BSPP, BSPT etc
Surface: SR/ Polish
Inspection: Dimension/ thread/ material/ NDT
Package: Cardboard and wooden boxes
Class: 150#
Application: Water, gas, air, oil, steam pipe system
Application | Suitable for water, gas, air, oil, steam pipe system. |
Package | Wooden case |
Inspection | Dimension inspection, thread inspection, material inspection and non-destructive inspection |
Casting fitting Elbow Test:
NDT ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
What is the difference between casting and forging?
Casting
The process of melting the metal into a liquid meeting certain requirements and pouring it into the mold, then cooling, solidification and cleaning to obtain a casting (part or blank) with predetermined shape, size and performance.
Forging
The forging machine is used to exert pressure on the metal blank to produce plastic deformation, so as to obtain the forging with certain mechanical properties, shape and size.
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving stainless steel customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
For more information, you are welcome to contact us by email. Thank you for your interest.
