ASTM A403 6000LBS Weldeding Outlet Stainless Steel Pipe Fittings For Medical Industry

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOFHPF49

Detail Information

Material: F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91 Size: NPS 1 / 8 Inch- 4 Inch
Type: Socket-welded, Threaded ,Butt-welding Package: Plywood Case
PMI: 100% Standard: ASTM A105, A305LF2, A106, A312, A234, A403

Product Description

ASTM A403 Weldeding Outlet Stainless Steel 6000LBS High Pressure Pipe Fittings For Medical Industry





TYPE:

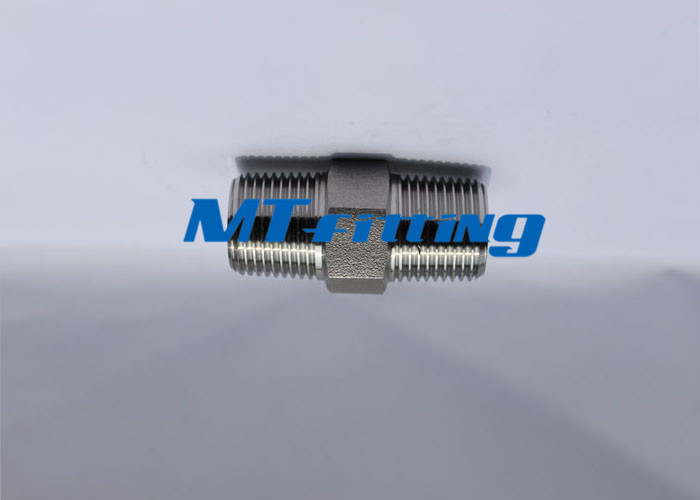

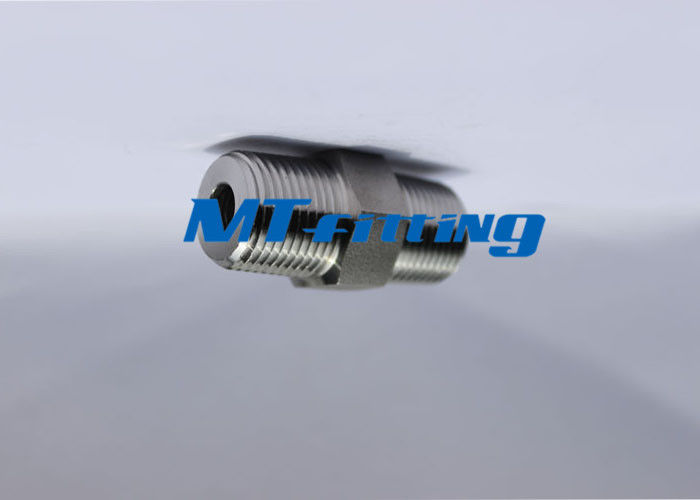

A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.

Socket-welded, Threaded ( NPT or PT type).



B: Butt-welding





SIZE: NPS 1 / 8 inch- 4 inch



RATING:

Pressure: Threaded end: 2000/3000/6000 LBS

Socket-welded end: 3000/6000/9000 LBS

Butt welded end: Sch40/Sch80/Sch160/XXS





SPECIFICATIONS:



A. DIM. SPEC.:

GB / T 7306, 12716, 14383, 14626

ASME B16.11-2001 (Revision of ASME SB16.11-1996)

MSS-SP-79,83,95,97 and bothwell spec.

JS B0203, B2316



B. MATERAL SPEC:

ASTM A105, A305LF2, A106, A312, A234, A403

GB / T 699 20MM

ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)



Material Grade F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
Size NPS 1 / 8 inch- 4 inch
Standard ASME B16.11
Process Method Forged / Casting





ASTM A403 Standard Chemical Composition :



Elements WP304L(wt%) / CR304L / S30403 304(wt%) / CR304 / S30400 316L (wt%) / CR316L /S31603 316 (wt%) / CR316 / S31600
(C) Carbon, max 0.03 0.08 0.03 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A


1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .




ASTM A403 6000LBS Weldeding Outlet Stainless Steel Pipe Fittings For Medical Industry
