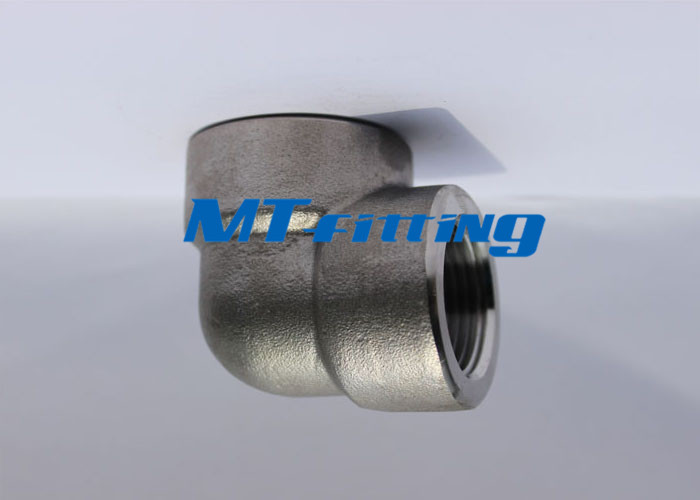

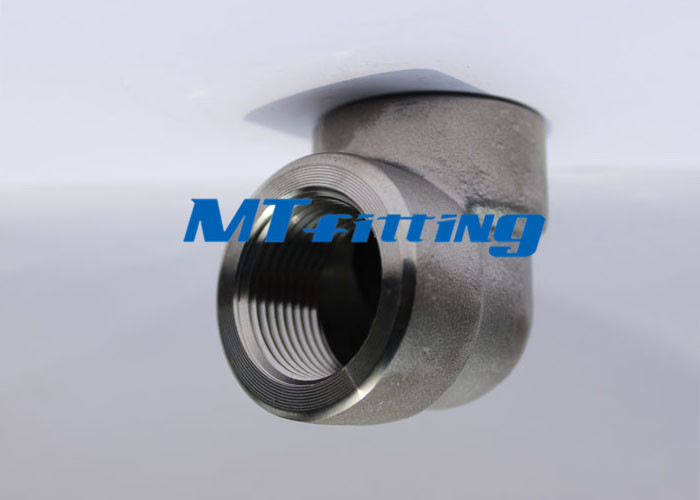

Threaded F91 ASTM A105 Stainless Steel Forged High Pressure Pipe Fittings ASME 16.11

China Threaded F91 ASTM A105 Stainless Steel Forged High Pressure Pipe Fittings ASME 16.11 supplier
Threaded F91 ASTM A105 Stainless Steel Forged High Pressure Pipe Fittings ASME 16.11 supplier Threaded F91 ASTM A105 Stainless Steel Forged High Pressure Pipe Fittings ASME 16.11 supplier

Large Image :  Threaded F91 ASTM A105 Stainless Steel Forged High Pressure Pipe Fittings ASME 16.11

Product Details:

Place of Origin: CHINA
Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000
Model Number: MTSCOFHPF51

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: 6000-17000USD/TON
Packaging Details: Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Contact Now
Detailed Product Description
Material: F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91 Size: NPS 1 / 8 Inch- 4 Inch
Type: Socket-welded, Threaded ,Butt-welding Package: Plywood Case
PMI: 100% Standard: ASTM A105, A305LF2, A106, A312, A234, A403

Threaded F91 ASTM A105 Stainless Steel High Pressure Pipe Fitting , ASME 16.11







Material Grade F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
Size NPS 1 / 8 inch- 4 inch
Standard ASME B16.11
Process Method Forged / Casting


1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .






TYPE:

A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.

Socket-welded, Threaded ( NPT or PT type).



B: Butt-welding





SIZE: NPS 1 / 8 inch- 4 inch



RATING:

Pressure: Threaded end: 2000/3000/6000 LBS

Socket-welded end: 3000/6000/9000 LBS

Butt welded end: Sch40/Sch80/Sch160/XXS





SPECIFICATIONS:



A. DIM. SPEC.:

GB / T 7306, 12716, 14383, 14626

ASME B16.11-2001 (Revision of ASME SB16.11-1996)

MSS-SP-79,83,95,97 and bothwell spec.

JS B0203, B2316



B. MATERAL SPEC:

ASTM A105, A305LF2, A106, A312, A234, A403

GB / T 699 20MM

ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)



Size of raw material: Dia. 19-85mm round bar.



MARKING:



A. Carbon and alloy steel: Marked by stamping.

B. Stainless steel: Marked by electro-etched, jetprinted or stamping.

C. 3/8 inch under: Brand only

D. 1/2 inch to 4 inch: Marked with brand, material, heat B16 (for ASME B16.11 product), pressure and size.





FINISHING: Carbon steel: Galcanized or Black

Stainless steel: Pickled



PACKING: Cartion/wooden case

Plywooden case



 MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
