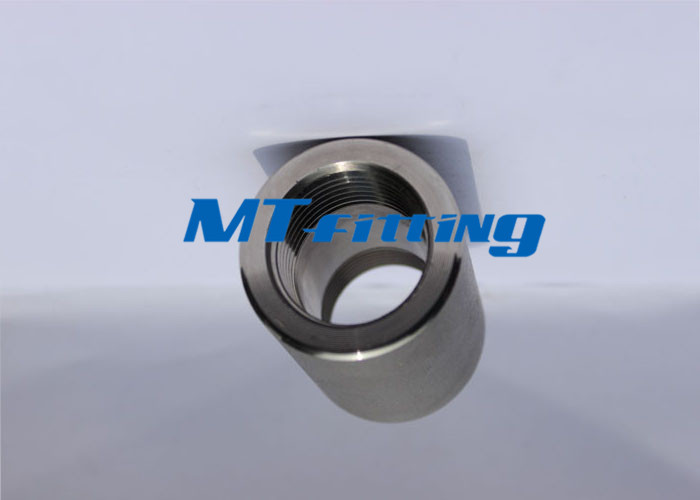

F304H ASTM A105 6000LBS Coupling Forged Pipe Fittings Stainless Steel Threaded End

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOFHPF52

Detail Information

Material: F304/304l/316/316l/310s/309s/321 Surface: Pickling,Galcanized Or Black
Type: Socket-welded, Threaded, Butt-welding Package: Plywood Case
Applications: Connection Standard: ASTM A105, A305LF2, A106, A312, A234, A403

Product Description

F304H ASTM A105 6000LBS Coupling Forged Pipe Fittings, Stainless Steel Threaded End

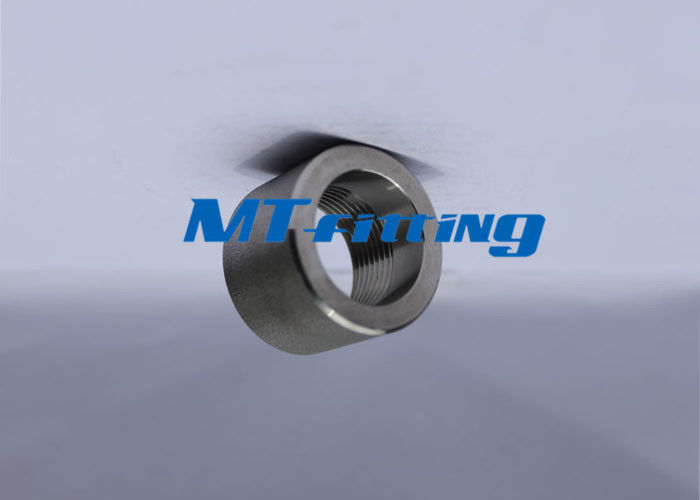

1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .





TYPE:

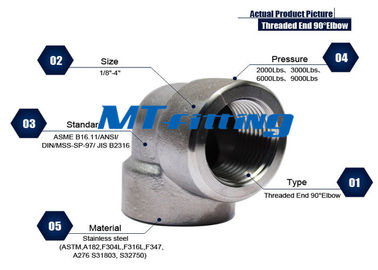

A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.

Socket-welded, Threaded ( NPT or PT type).



B: Butt-welding





SIZE: NPS 1 / 8 inch- 4 inch



RATING:

Pressure: Threaded end: 2000/3000/6000 LBS

Socket-welded end: 3000/6000/9000 LBS

Butt welded end: Sch40/Sch80/Sch160/XXS





SPECIFICATIONS:



A. DIM. SPEC.:

GB / T 7306, 12716, 14383, 14626

ASME B16.11-2001 (Revision of ASME SB16.11-1996)

MSS-SP-79,83,95,97 and bothwell spec.

JS B0203, B2316



B. MATERAL SPEC:

ASTM A105, A305LF2, A106, A312, A234, A403

GB / T 699 20MM

ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)



Size of raw material: Dia. 19-85mm round bar.





F304H ASTM A105 6000LBS Coupling Forged Pipe Fittings Stainless Steel Threaded End
