ASTM A182 F316 / 316L Forged High Pressure Pipe Fittings , Stainless Steel Pipe Fittings

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOFHPF50

Detail Information

Material: F304/304l/316/316l/310s/309s/317l Surface: Pickling,Galcanized Or Black
Type: Socket-welded, Threaded, Butt-welding Package: Plywood Case
Applications: Connection Standard: ASME B16.11, ASTM A105

Product Description

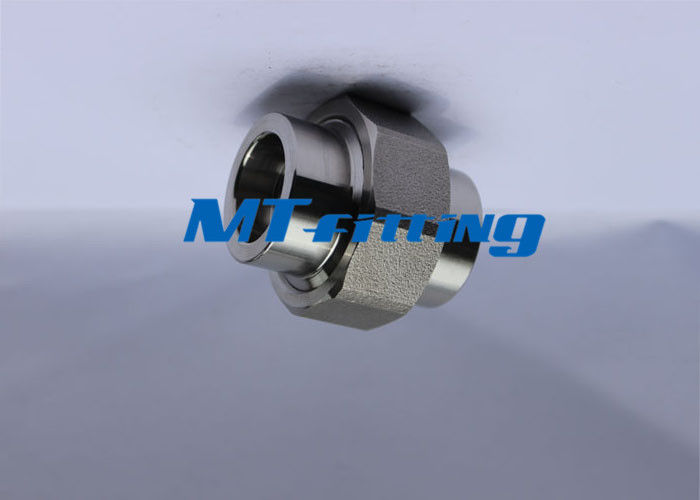

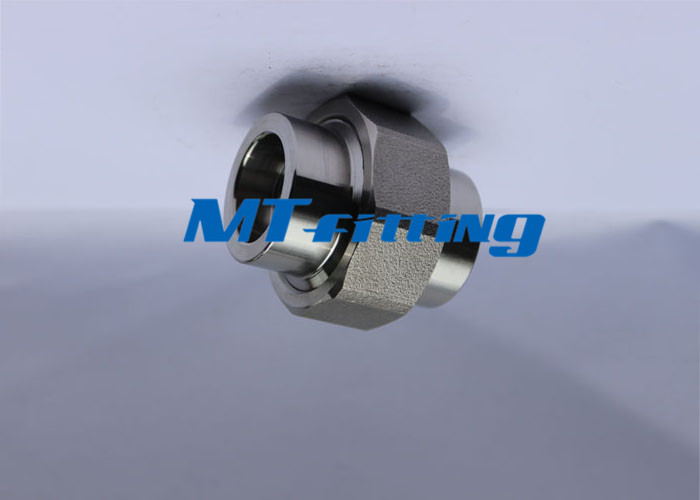

ASTM A182 F316 / 316L High Pressure Forged Union , Stainless Steel Pipe Fittings







Material Grade F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
Size NPS 1 / 8 inch- 4 inch
Standard ASME B16.11
Process Method Forged / Casting







1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.

2 . Process Method : Forged

3 . Materials : Stainless Steel ,Carbon steel, etc

4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.

5 . Size Range : NPS 1 / 8 inch- 4 inch

6 . Tolerances : according to the specification or customer’s request and drawings

7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .





ASTM A182 / A182M Standard Chemical Composition :



Elements 304L(wt%) / F304L / S30403 304(wt%) / F340 / S30400 316L (wt%) / F316L /S31603 316 (wt%) / F316 / S31600 310 (wt%) / F310 / S31000
(C) Carbon, max 0.03 0.08 0.03 0.08 0.25
(Mn) Manganese, max 2 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1 1
(Ni) Nickel 8.0 - 13.0 8.0 - 11.0 10.0 - 15.0 10.0 - 14.0 19.0 - 22.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0 24.0 - 26.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0 N/A
(Fe) Iron N/A N/A N/A N/A N/A
(Cu) Copper N/A N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A N/A





ASTM A182  F316 / 316L Forged High Pressure Pipe Fittings , Stainless Steel Pipe Fittings
