F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded

China F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded supplier
F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded supplier F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded supplier

Large Image :  F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded

Product Details:

Place of Origin: CHINA
Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000
Model Number: MTSCOFHPF02

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Contact Now
Detailed Product Description
Material: F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91 Size: NPS 1 / 8 Inch- 4 Inch
Type: Socket-welded, Threaded ,Butt-welding Package: Plywood Case
PMI: 100% Standard: ASTM A105, A305LF2, A106, A312, A234, A403

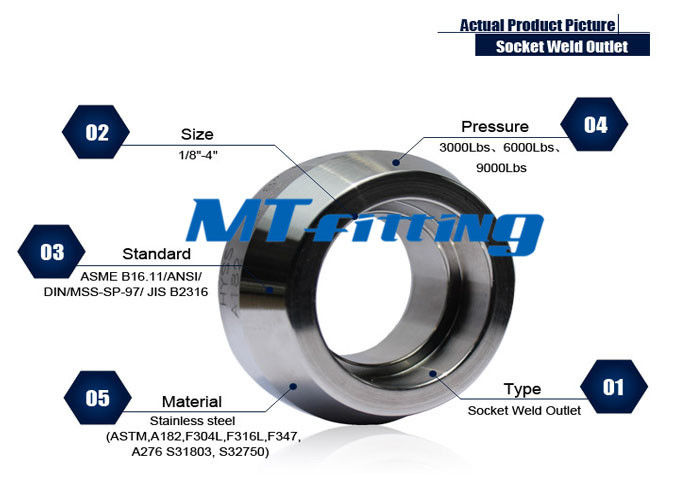

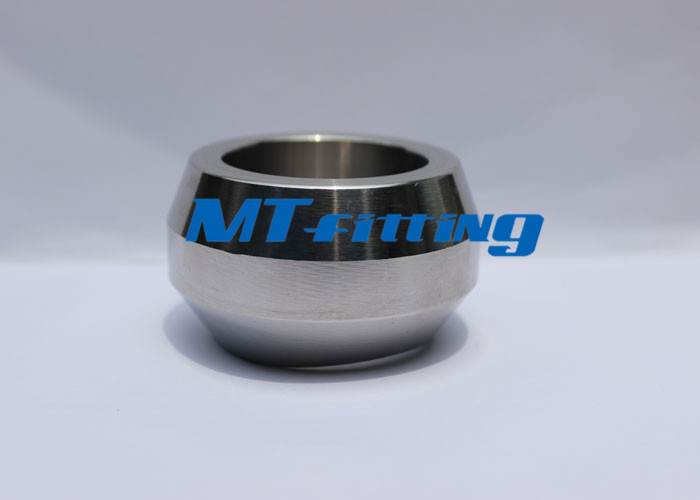

F316 / 316L Stainless Steel Welding Outlet Forged High Pressure Pipe Fitting With Socket Welded





Material GradeF304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
SizeNPS 1 / 8 inch- 4 inch
StandardASME B16.11
Process MethodForged / Casting




1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .



F316 / 316L Forged High Pressure Pipe Fittings With Socket Welded


ASTM A182 / A182M Standard Chemical Composition :



Elements304L(wt%) / F304L / S30403304(wt%) / F340 / S30400316L (wt%) / F316L /S31603316 (wt%) / F316 / S31600310 (wt%) / F310 / S31000
(C) Carbon, max0.030.080.030.080.25
(Mn) Manganese, max22222
(P) Phosphorus, max0.0450.0450.0450.0450.045
(S) Sulfur, max0.030.030.030.030.03
(Si) Silicon, max11111
(Ni) Nickel8.0 - 13.08.0 - 11.010.0 - 15.010.0 - 14.019.0 - 22.0
(Cr) Chromium18.0 - 20.018.0 - 20.016.0 - 18.016.0 - 18.024.0 - 26.0
(Mo) MolybdenumN/AN/A2.0 - 3.02.0 - 3.0N/A
(Fe) IronN/AN/AN/AN/AN/A
(Cu) CopperN/AN/AN/AN/AN/A
(N) NitrogenN/AN/AN/AN/AN/A




MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
