Product Description

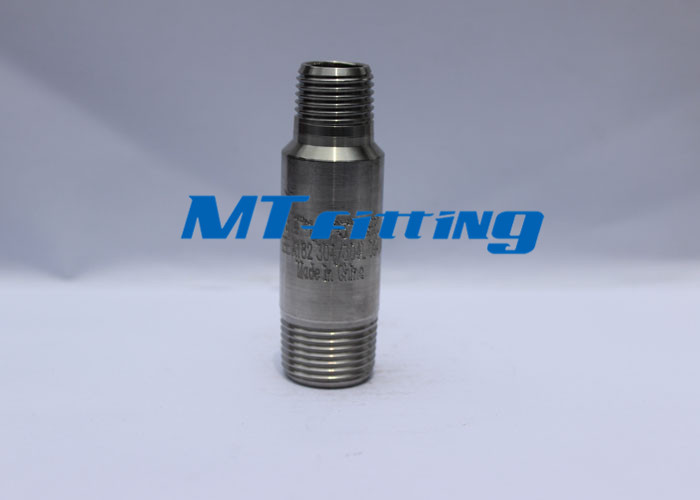

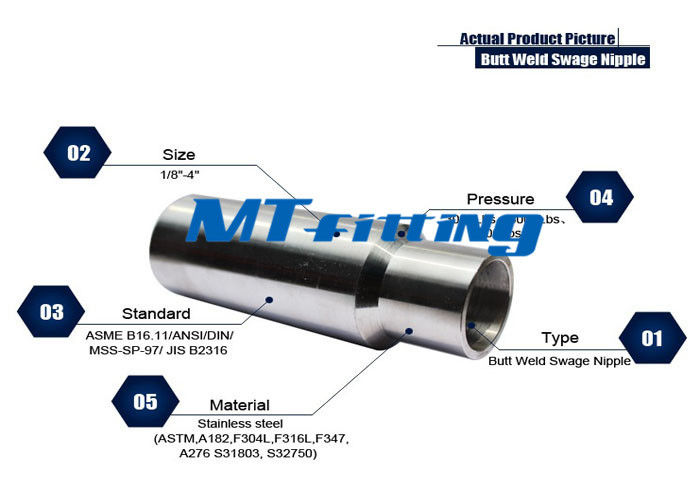

F304 Stainless Steel Butt Welded / Threaded Swage Nipple High Pressure Pipe Fitting
TYPE:
A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
Socket-welded, Threaded ( NPT or PT type).
B: Butt-welding
SIZE: NPS 1 / 8 inch- 4 inch
RATING:
Pressure: Threaded end: 2000/3000/6000 LBS
Socket-welded end: 3000/6000/9000 LBS
Butt welded end: Sch40/Sch80/Sch160/XXS
| Material Grade |
F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc. |
| Size |
NPS 1 / 8 inch- 4 inch |
| Standard |
ASME B16.11 |
| Process Method |
Forged / Casting |
SPECIFICATIONS:
A. DIM. SPEC.:
GB / T 7306, 12716, 14383, 14626
ASME B16.11-2001 (Revision of ASME SB16.11-1996)
MSS-SP-79,83,95,97 and bothwell spec.
JS B0203, B2316
B. MATERAL SPEC:
ASTM A105, A305LF2, A106, A312, A234, A403
GB / T 699 20MM
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)
| 1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc. |
| 2 . Process Method : Forged |
| 3 . Materials : Stainless Steel ,Carbon steel, etc |
| 4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc. |
| 5 . Size Range : NPS 1 / 8 inch- 4 inch |
| 6 . Tolerances : according to the specification or customer’s request and drawings |
| 7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc . |
FINISHING: Carbon steel: Galcanized or Black
Stainless steel: Pickled
PACKING: Cartion/wooden case
Plywooden case
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
