ASTM A234 / A403 F316 / 316L Stainless Steel 90 Degree Elbow Forged Pipe Fittings

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED & AD2000 Model Number : MTSCOFHPF29

Detail Information

Material: F304/304l/316/316l/310s/309s/317l Surface: Pickling,Galcanized Or Black
Type: Socket-welded, Threaded, Butt-welding Package: Plywood Case
Applications: Connection Standard: ASME B16.11, ASTM A105

Product Description

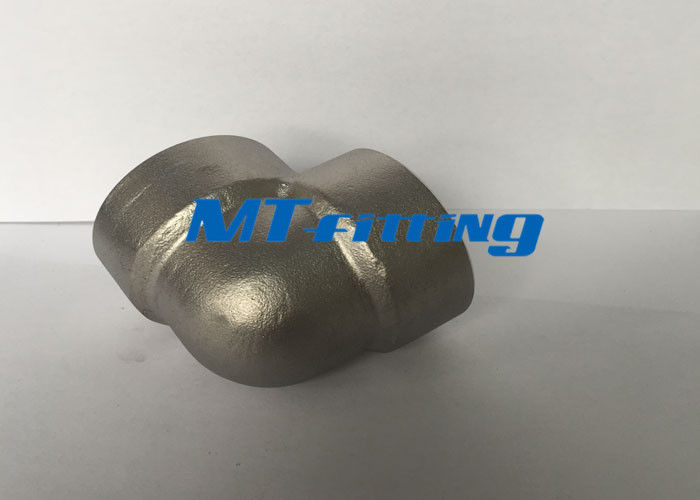

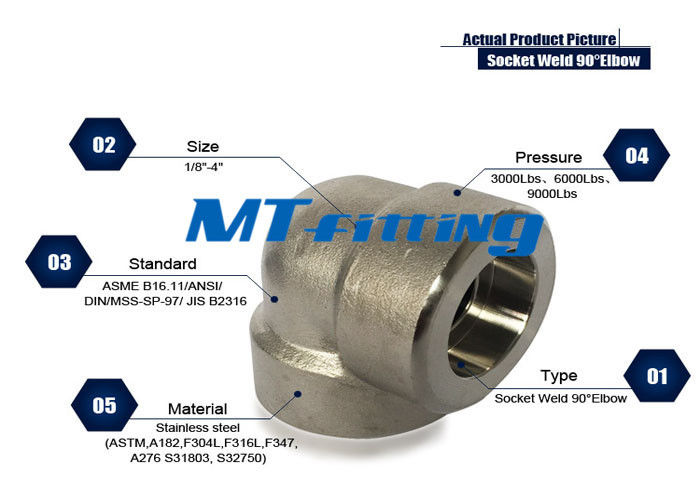

ASTM A234/A403 F316/316L Stainless Steel 90 Degree Elbow Forged Pipe Fittings





Material Grade F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
Size NPS 1 / 8 inch- 4 inch
Standard ASME B16.11
Process Method Forged / Casting



TYPE:
A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
Socket-welded, Threaded ( NPT or PT type).

B: Butt-welding


SIZE: NPS 1 / 8 inch- 4 inch

RATING:
Pressure: Threaded end: 2000/3000/6000 LBS
Socket-welded end: 3000/6000/9000 LBS
Butt welded end: Sch40/Sch80/Sch160/XXS


SPECIFICATIONS:

A. DIM. SPEC.:
GB / T 7306, 12716, 14383, 14626
ASME B16.11-2001 (Revision of ASME SB16.11-1996)
MSS-SP-79,83,95,97 and bothwell spec.
JS B0203, B2316

B. MATERAL SPEC:
ASTM A105, A305LF2, A106, A312, A234, A403
GB / T 699 20MM
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)





1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.

2 . Process Method : Forged

3 . Materials : Stainless Steel ,Carbon steel, etc

4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.

5 . Size Range : NPS 1 / 8 inch- 4 inch

6 . Tolerances : according to the specification or customer’s request and drawings

7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .



ASTM A234 / A403 F316 / 316L Stainless Steel 90 Degree Elbow Forged Pipe Fittings
