ASME B16.11 Swage Nipple Forged High Pressure Pipe Fittings With Threaded End

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOFHPF42

Detail Information

Material: F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91 Size: NPS 1 / 8 Inch- 4 Inch
Type: Socket-welded, Threaded ,Butt-welding Package: Plywood Case
PMI: 100% Standard: ASTM A105, A305LF2, A106, A312, A234, A403
Highlight:

stainless steel pipe fittings

,

forged steel pipe fittings

Product Description

ASME B16.11 Swage Nipple High Pressure Pipe Fittings With Threaded End Forged







Material Grade F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc.
Size NPS 1 / 8 inch- 4 inch
Standard ASME B16.11
Process Method Forged / Casting



1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .






ASTM A182 / A182M Standard Chemical Composition :



Elements 304L(wt%) / F304L / S30403 304(wt%) / F340 / S30400 316L (wt%) / F316L /S31603 316 (wt%) / F316 / S31600 310 (wt%) / F310 / S31000
(C) Carbon, max 0.03 0.08 0.03 0.08 0.25
(Mn) Manganese, max 2 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1 1
(Ni) Nickel 8.0 - 13.0 8.0 - 11.0 10.0 - 15.0 10.0 - 14.0 19.0 - 22.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0 24.0 - 26.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0 N/A
(Fe) Iron N/A N/A N/A N/A N/A
(Cu) Copper N/A N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A N/A




ASTM A403 Standard Chemical Composition :



Elements WP304L(wt%) / CR304L / S30403 304(wt%) / CR304 / S30400 316L (wt%) / CR316L /S31603 316 (wt%) / CR316 / S31600
(C) Carbon, max 0.03 0.08 0.03 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A

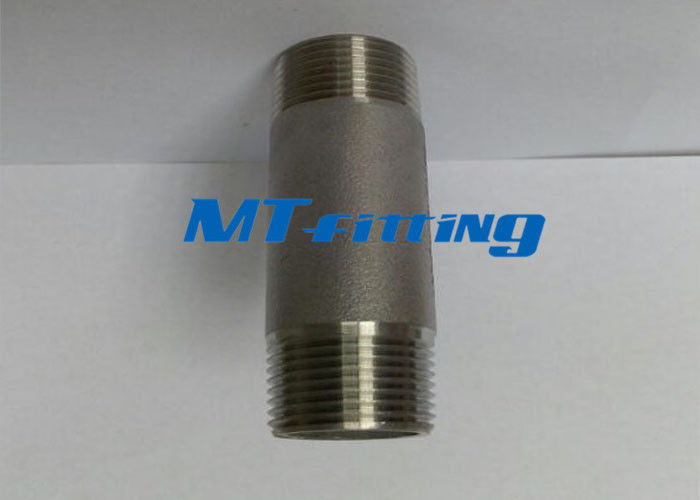

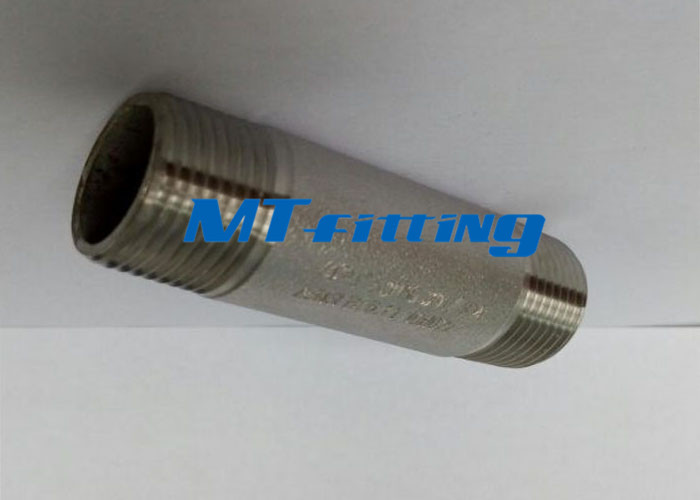

ASME B16.11 Swage Nipple Forged High Pressure Pipe Fittings With Threaded End 0
